Açıklama

Konum: Almanya, Baden-Württemberg Güneybatı

Durum: Yeni kadar iyi

Üretici firma: SF Sistemleri Büchele

Model: SFB 301 ECO 150 Bar

İnşaat yılı: 2012

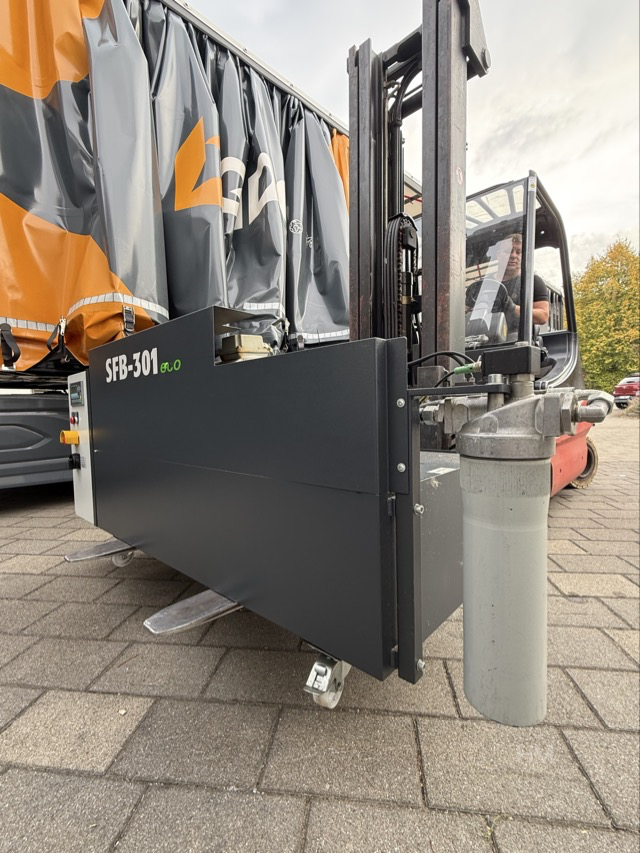

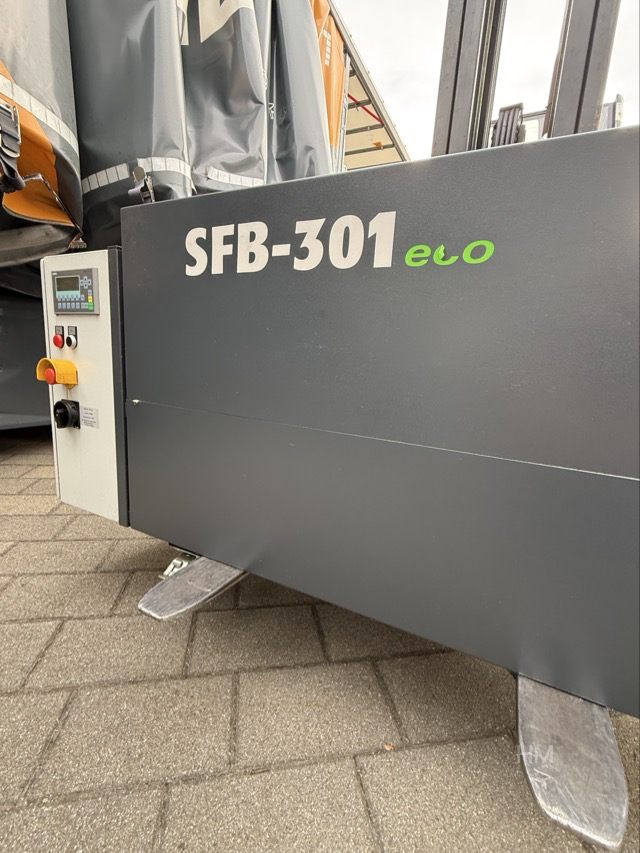

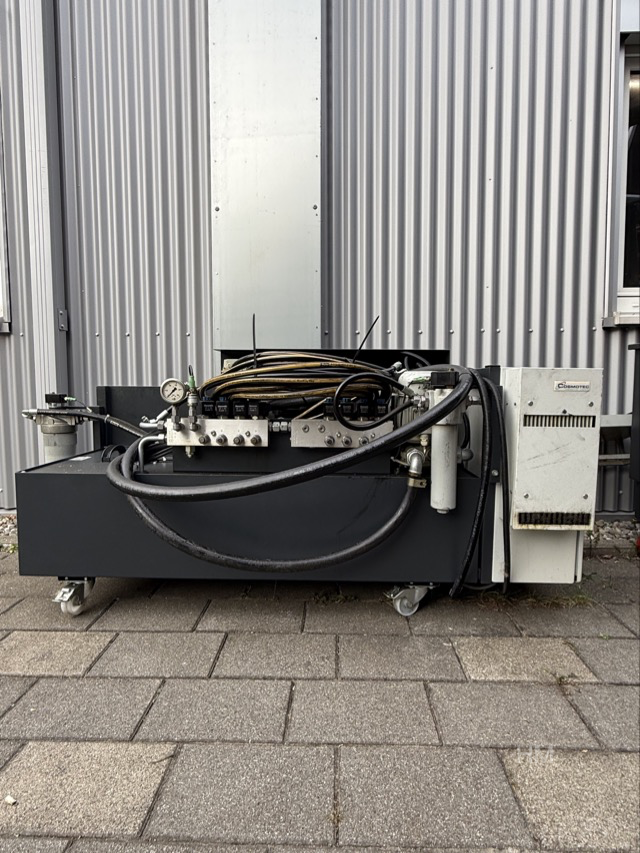

Zum Verkauf steht eine Büchele / SF-Systeme SFB-301 eco Hochdruckanlage mit 150 bar Betriebsdruck, Wechselfiltersystem, zusätzlichem Feinfilter 10 µm, 8 Ventilen und 200 Liter Tankvolumen, Baujahr 2012.

Teknik veriler

Hersteller: SF-Systeme Büchele
Modell: SFB-301 eco
Yapım yılı: 2012
Max. Betriebsdruck: 150 bar
Förderleistung bei 150 bar: ca. 24 l/min
Tankvolumen: ca. 200 Liter
Hauptfiltersystem: Wechselfilter
Filterfeinheit Hauptfilter: ca. 40 µm

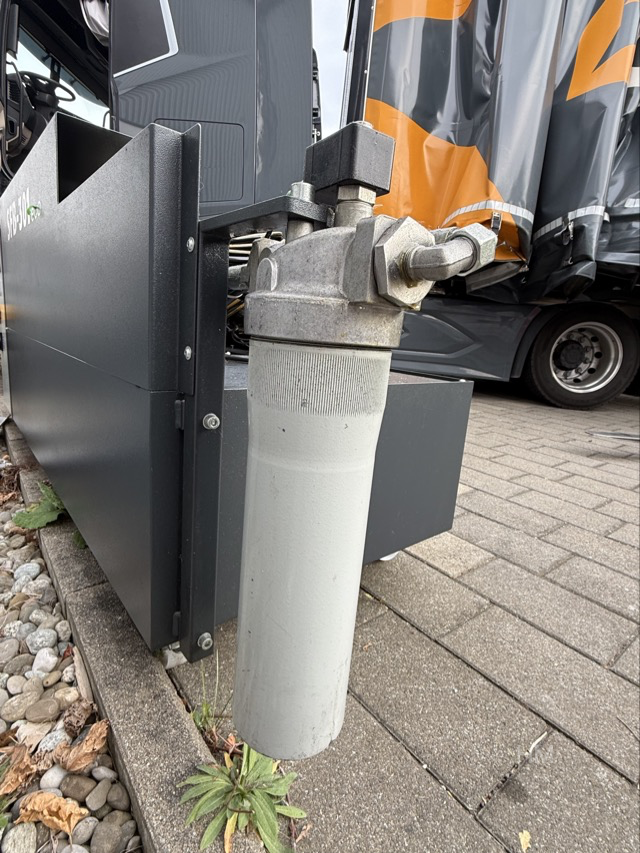

Zusatzfilter / Feinfilter: 10 µm
Ventilausstattung: 8 Ventile
Anzahl Kühlmittelabgänge: bis zu 8 separat ansteuerbare Kreise, abhängig von der Maschinenintegration
Grundabmessungen L × B × H: ca. 1.475 × 700 × 730 mm
Medium: Kühlschmierstoff / KSS

Technische Dokumentation vorhanden.

Makine randevu ile incelenebilir.
Teknik veri ve bilgilerdeki değişiklikler ve hatalar ile ön satış hakkı saklıdır!

A Büchele / SF-Systeme SFB-301 eco high-pressure system is for sale, with an operating pressure of 150 bar, a replaceable filter system, an additional 10 µm fine filter, 8 valves and a tank capacity of 200 litres; manufactured in 2012.

Teknik özellikler

Manufacturer: SF-Systeme Büchele
Model: SFB-301 eco
Üretim yılı: 2012
Max. operating pressure: 150 bar
Flow rate at 150 bar: approx. 24 l/min
Tank capacity: approx. 200 litres
Main filter system: replaceable filter
Filter fineness of main filter: approx. 40 µm
Additional filter / fine filter: 10 µm
Valve configuration: 8 valves
Number of coolant outlets: up to 8 separately controllable circuits, depending on machine integration
Overall dimensions L × W × H: approx. 1,475 × 700 × 730 mm
Fluid: cooling lubricant / KSS

Technical documentation available.

Makine randevu ile yerinde görülebilir.
We reserve the right to make changes and correct errors in the technical data and specifications, and to sell the item in the meantime!
