Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: Tornos

Model: HY 6

Year of construction: 1989

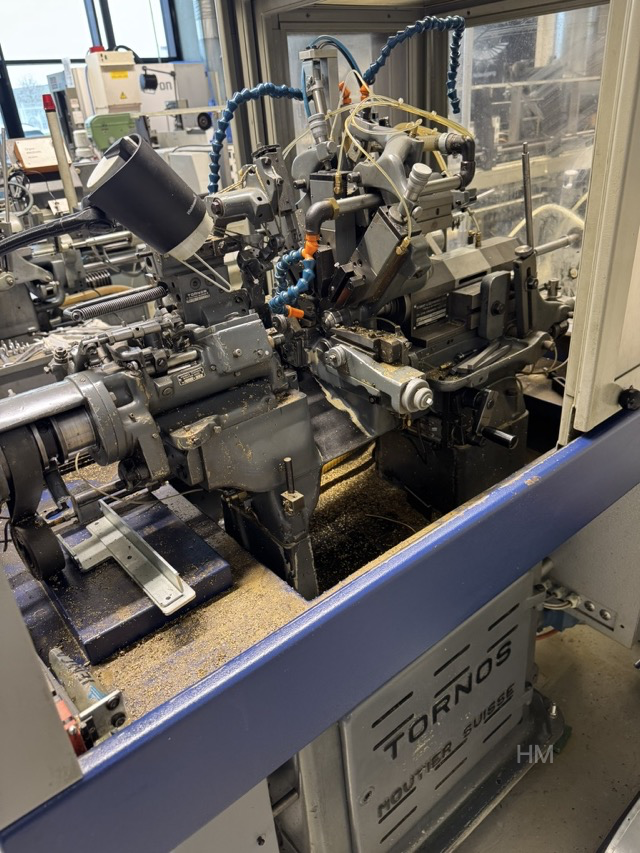

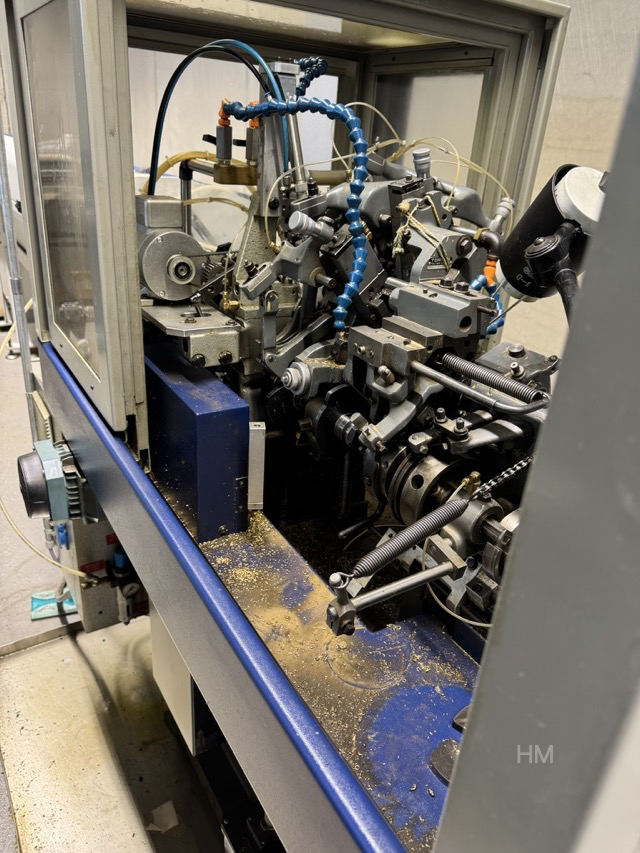

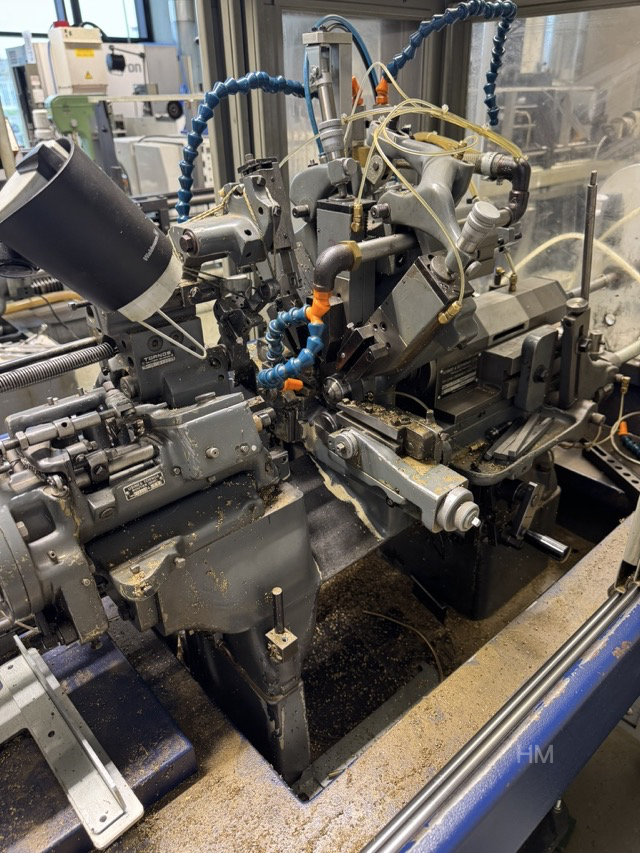

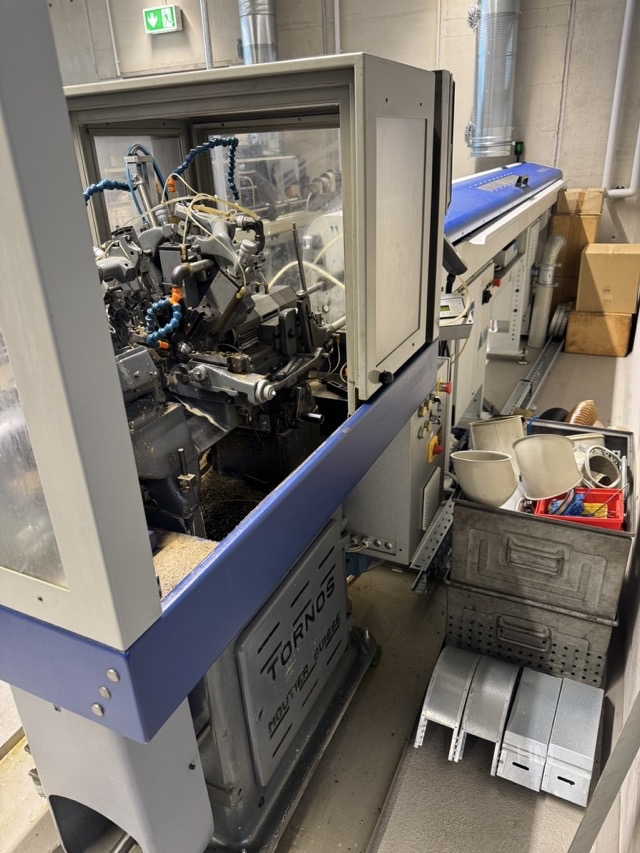

For sale is a used TORNOS MS7 HY 6 precision automatic lathe, manufactured in 1989, equipped with an IEMCA ELITE 112 bar feeder, manufactured in 2012.
Technical Data TORNOS MS7 / MS7 HY 6:

Sliding head automatic lathe
Max. workpiece diameter: 7 mm
Spindle bore: 8 mm
Barrel with flat curve: 60 mm
Largest thread diameter: M6
Number of turning tools: 5
Spindle speeds: 20 steps, 1,400–10,000 rpm
Electrical connection: 3 x 380 V / 50 Hz
Total output: approx. 2 HP
Machine weight: approx. 520 kg
Dimensions: approx. 1,200 x 700 x 1,400 mm
Equipment as per available source: Lamp, central lubrication, protective cover

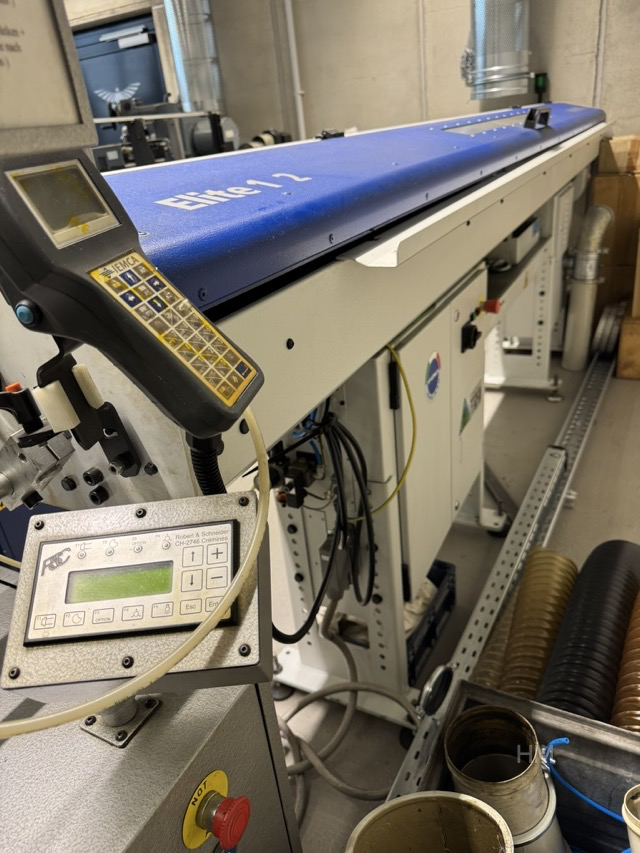

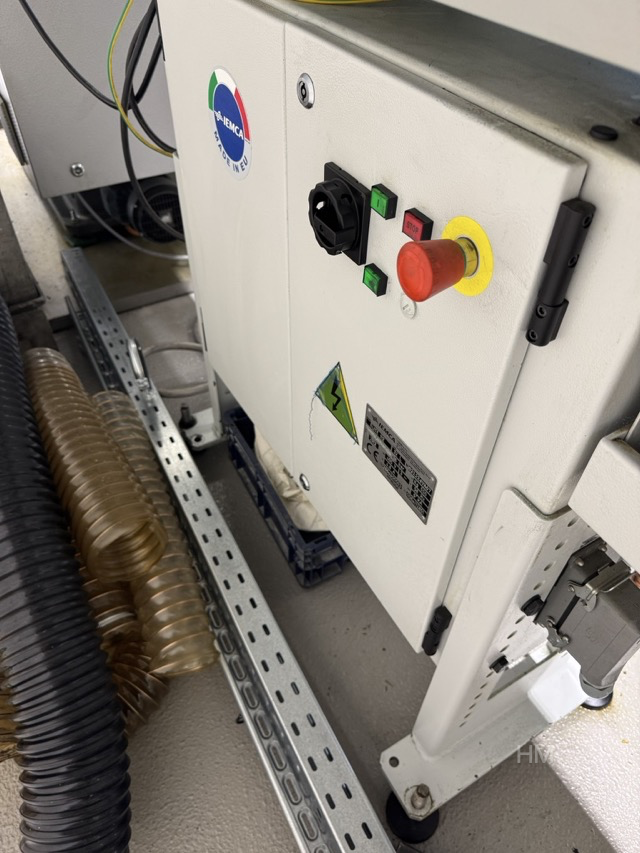

Technical Data IEMCA ELITE 112, Year 2012:
Manufacturer: IEMCA
Type: ELITE 112
Year of construction: 2012
According to the manufacturer, the ELITE-112 series is designed for machining thin bars and covers a range of 0.8 to 12.7 mm, depending on the version.

The machine can be inspected by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

A used TORNOS MS7 HY 6 precision automatic lathe, manufactured in 1989, is for sale, equipped with an IEMCA ELITE 112 bar feeder, manufactured in 2012.
TORNOS MS7 / MS7 HY 6: Technical specifications

Machine type: Long-bed automatic lathe
Maximum workpiece diameter: 7 mm
Spindle bore: 8 mm
Stroke with flat cam: 60 mm
Maximum thread diameter: M6
Number of turning tools: 5
Spindle speeds: 20 speeds, 1,400–10,000 rpm
Electrical connection: 3 x 380 V / 50 Hz
Total power: approx. 2 hp
Machine weight: approx. 520 kg
Dimensions: approx. 1,200 x 700 x 1,400 mm
Equipment according to available source: Lamp, central lubrication, protective cover

Technical data IEMCA ELITE 112, built in 2012:
Manufacturer: IEMCA
Model: ELITE 112
Year of manufacture: 2012
According to the manufacturer, the ELITE 112 series is designed for machining thin bars and, depending on the version, covers a range from 0.8 to 12.7 mm.

The machine can be viewed by appointment.
We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!
