Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: KEYENCE

Model: LM 1100

Year of construction: 2022

Operating hours: none

KEYENCE LM-1100 – Technical brief description

Year of construction: 2022

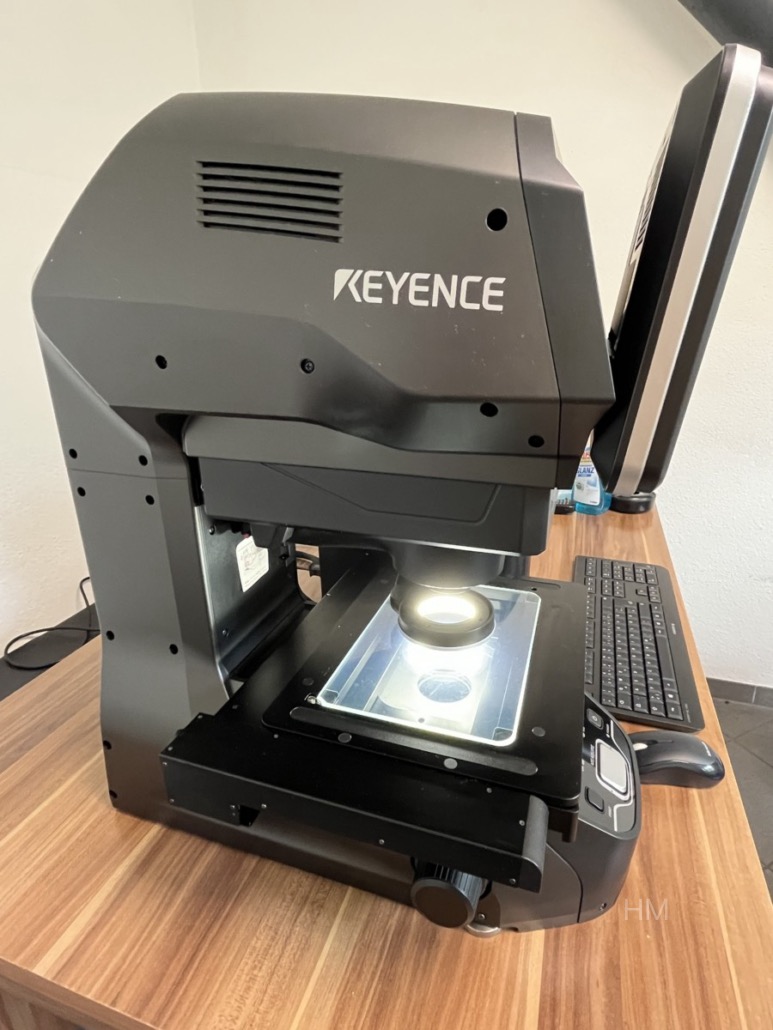

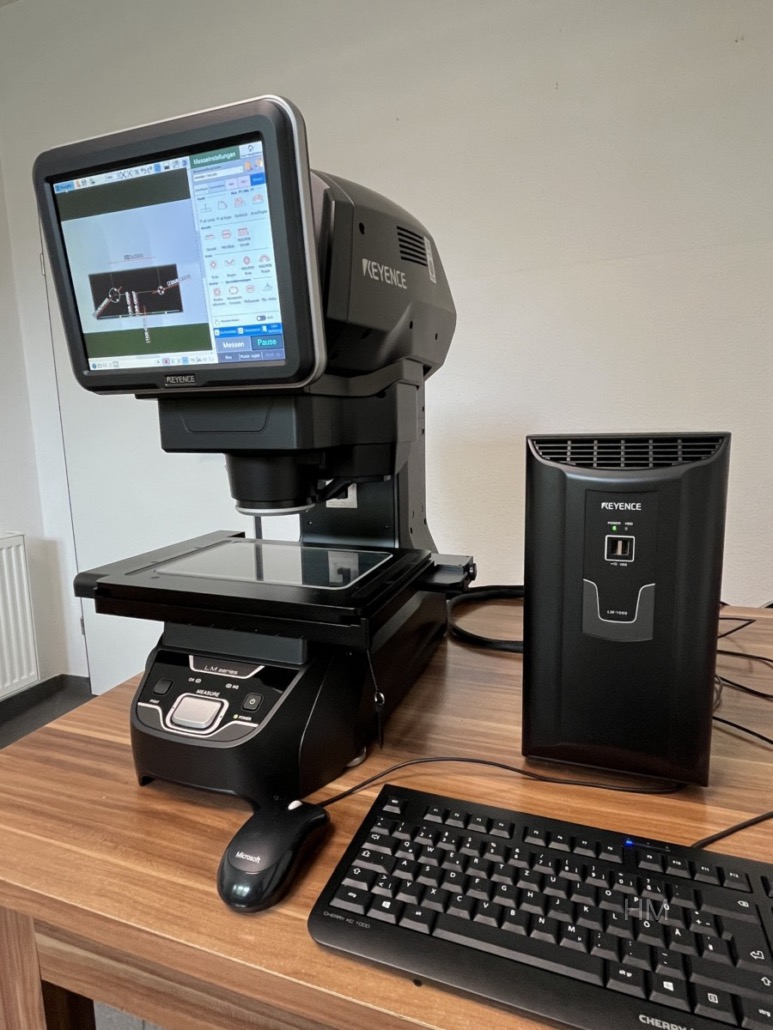

For sale is an optical measuring machine KEYENCE LM-1100, in good, working condition.

The KEYENCE LM-1100 is a high-precision, contactless instant measurement system from the LM series, ideal for manufacturing and quality control. It enables fast and reliable 2D measurements of individual and serial components without the need for complex fixing or manual alignment.

Main features:
Measurement principle: Optical Instant Measurement System (contactless)
Measuring range: depending on the lens configuration (typically up to approx. 300 × 200 mm)
Sensor: High-resolution CMOS camera with telecentric optics
Repeatability: in the µm range (typically ±1–2 µm, depending on the workpiece)

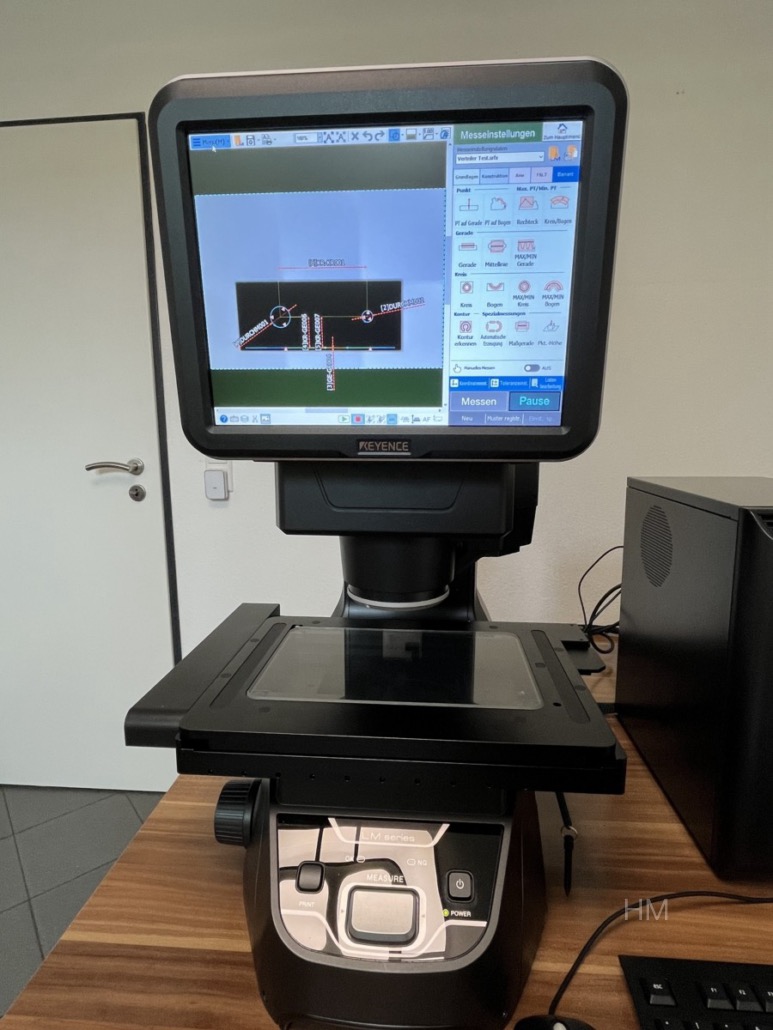

Display & Operation: integrated touch panel / LM controller

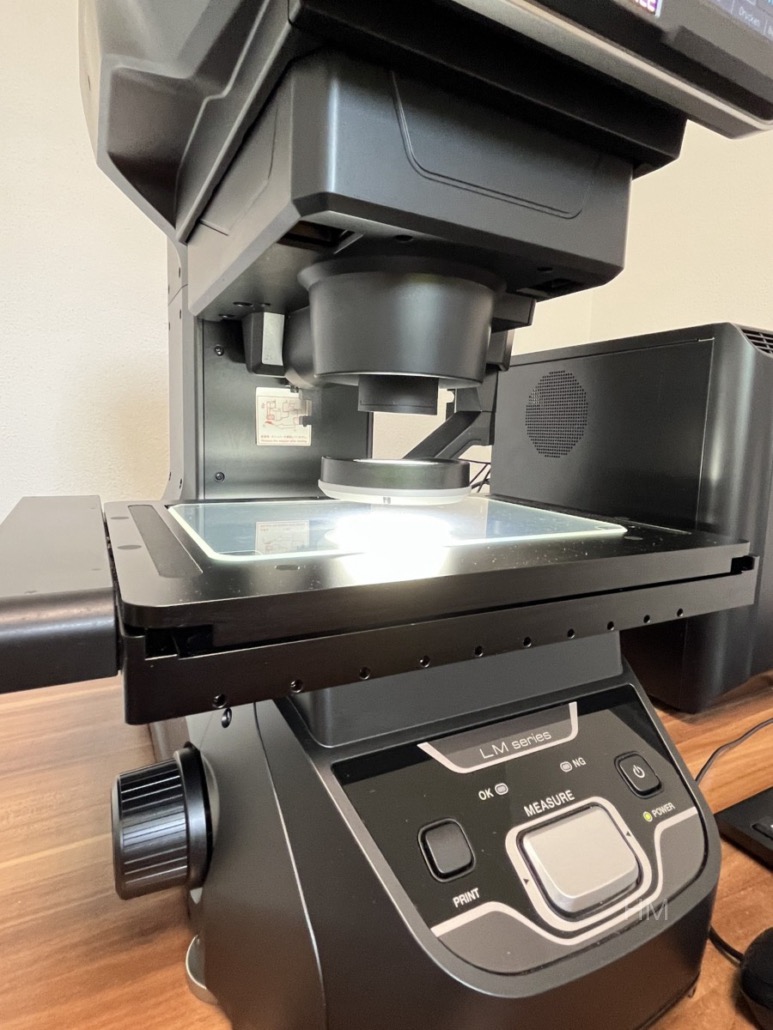

Lighting: Multi-angle LED system (ring, coaxial and segment lighting)
Measuring functions: Diameter, distance, angle, radii, shape and fit tolerances
Storage: internal data storage, USB data export possible

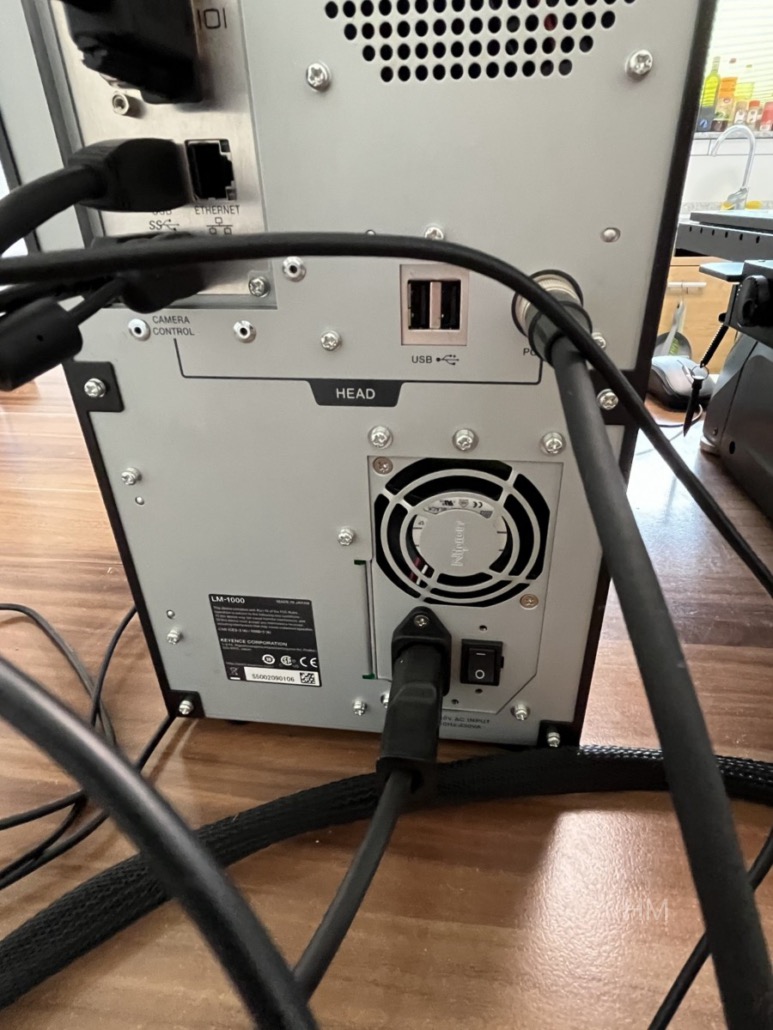

Interfaces: LAN, USB for data transmission and process integration
Dimensions: compact table design (approx. 500 × 600 × 600 mm)
Weight: approx. 40–60 kg (depending on configuration)
Operation: 100–240 V AC
Ambient: +10 to +35 °C
Special advantages:
Extremely fast measurement times in the seconds range
Operator-independent and reproducible results
No clamping or manual alignment required
Ideal for serial measurement and goods receipt control
Simple integration into production and quality assurance processes

The LM series is known for its easy operation, high measurement speed, and stable measurement results and is ideal for use in quality assurance, manufacturing, and incoming goods inspection.

The machine can be inspected under power by appointment.

Subject to technical changes and errors, and prior sale!

KEYENCE LM-1100 – Technical Short Description

Year of manufacture: 2022

For sale is a KEYENCE LM-1100 optical measuring machine, in good, fully functional condition.

The KEYENCE LM-1100 is a high-precision, non-contact Instant Measurement System from the LM series, ideal for manufacturing and quality control applications. It enables fast and reliable 2D measurements of individual parts as well as batch components without the need for complex fixturing or manual alignment.

Key features:
Measuring principle: Optical instant measurement system (non-contact)
Measuring range: depending on lens configuration (typically up to approx. 300 × 200 mm)
Sensor: high-resolution CMOS camera with telecentric optics
Repeatability: in the µm range (typically ±1–2 µm, depending on the workpiece)
Display & operation: integrated touch panel / LM controller
Illumination: multi-angle LED system (ring, coaxial, and segment lighting)
Measurement functions: diameter, distance, angle, radius, form and position tolerances
Storage: internal data storage, USB data export available
Interfaces: LAN, USB for data transfer and process integration
Dimensions: compact benchtop design (approx. 500 × 600 × 600 mm)
Weight: approx. 40–60 kg (depending on configuration)
Power supply: 100–240 V AC
Operating environment: +10 to +35 °C
Special Advantages:
Extremely fast measurement cycles within seconds
Operator-independent and highly repeatable results
No fixture or manual alignment required
Ideal for batch measurement and incoming goods inspection
Easy integration into production and quality assurance processes

The LM series is well known for its ease of use, high measurement speed, and stable results, making it ideal for quality assurance, manufacturing, and incoming inspection applications.

The machine can be inspected under power by appointment.

Specifications are subject to change, errors, and prior sale.
