Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: DMG

Model: NEF 520

Year of construction: 2006

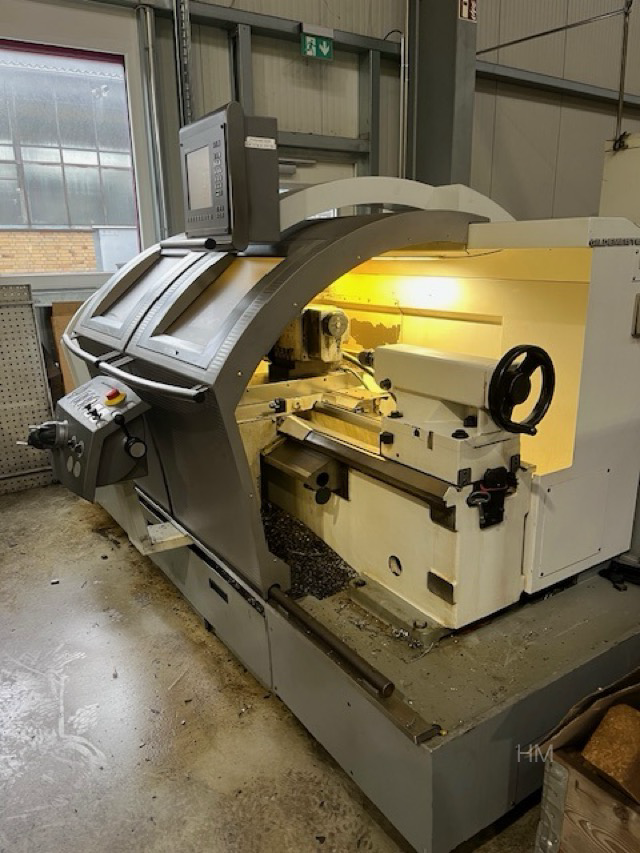

Gildemeister NEF 520

Machine type: CNC cycloid turning machine
Manufacturer: Gildemeister
Type: NEF 520
Year of construction: 2006

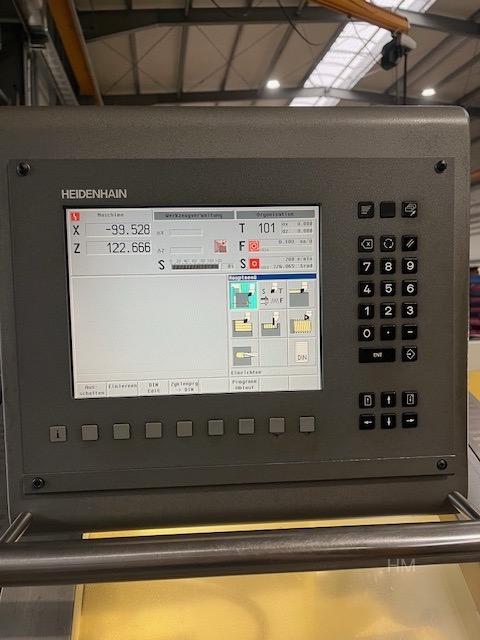

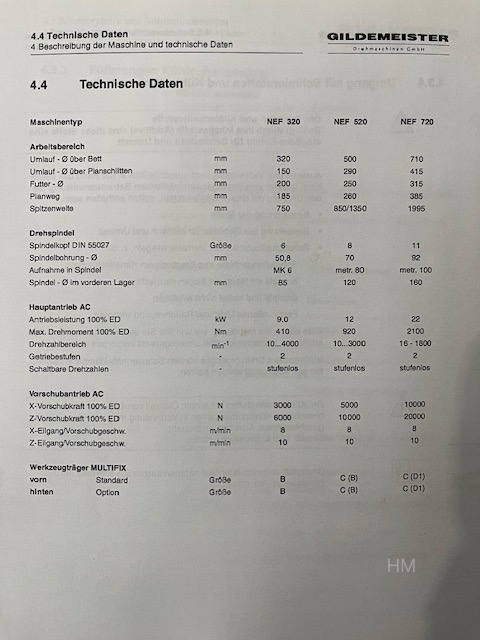

Control: Heidenhain ManualPlus 4110

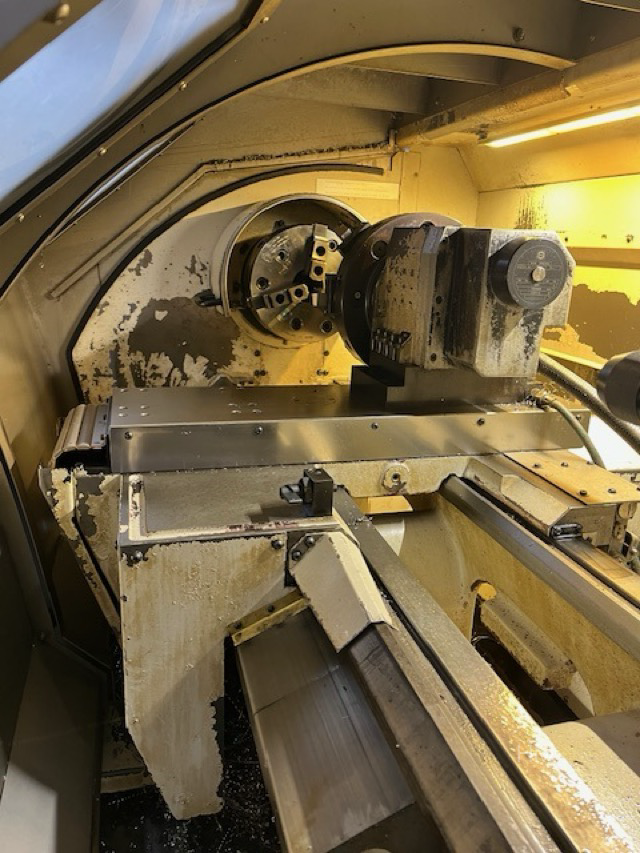

Work area

Rotary diameter over bed: 500 mm
Rotary diameter over platen slide: 290 mm
Rotation length: approx. 850 mm (also available longer depending on the model)
Maximum width: approx. 850 mm
X axis / travel path: 260 mm
Z axis / longitudinal travel: 900 mm

Main spindle

Spindle bore: 70 mm
Speed range: 10–3,000 rpm
Max. spindle torque: 920 Nm
Spindle mount: DIN 55027 / Size 8
2 speed ranges

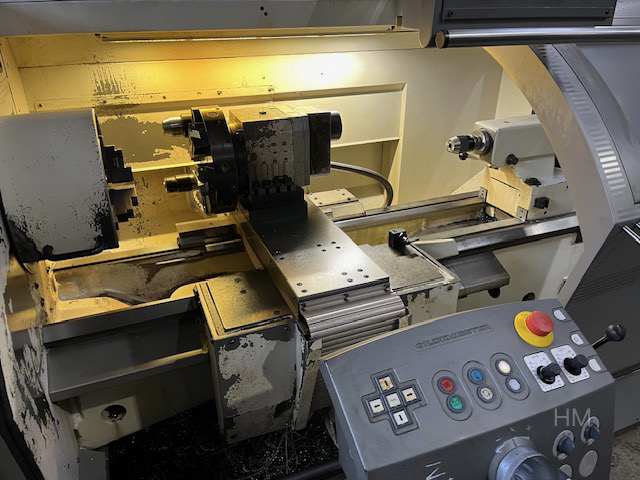

Tool holder

Tool holder: Multifix size C

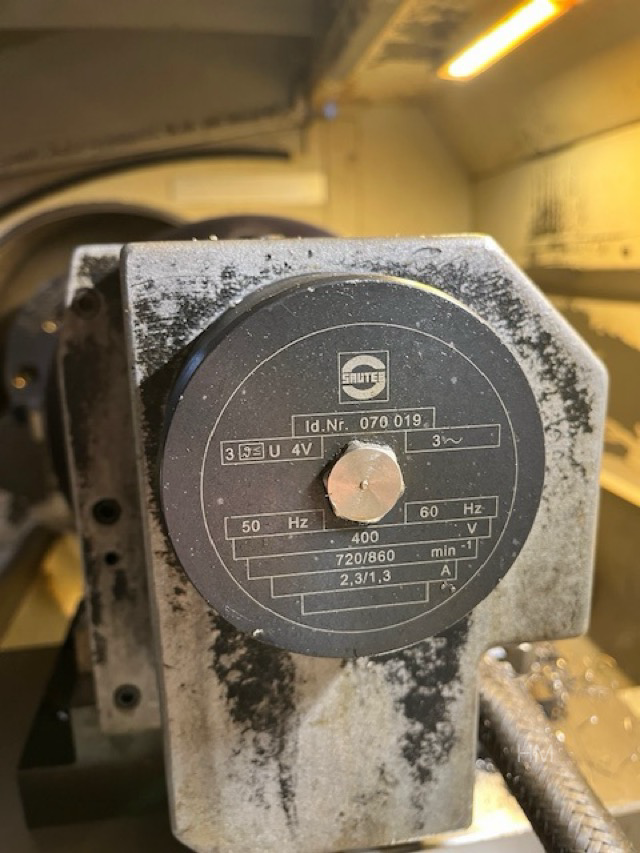

Depending on the equipment, it comes with a revolver head/Sauter revolver

Reitstock

Pin hole diameter: 180 mm
Recording: MK 5

Pre-orders

Speed X: 8 m/min
Eilgang Z: 10 m/min

Fastening devices

3-bowl feeder approx. Ø 250 mm
Depending on the equipment, additional trays or additional feed

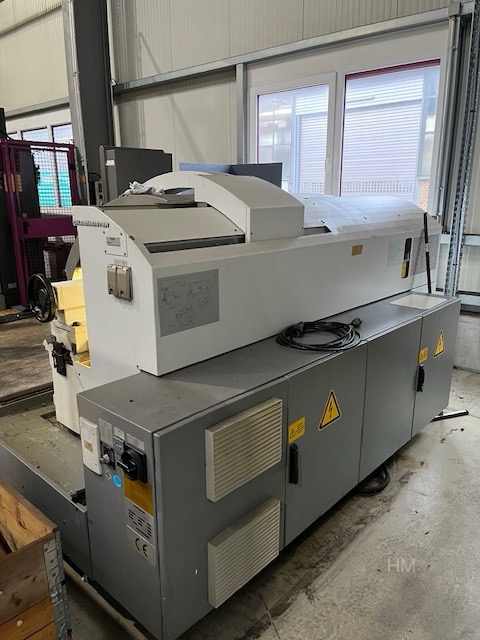

Drive power

Main spindle motor: approx. 12 kW

Machine weight: approximately 3.1–5.2 t depending on the model
Dimensions: approx. 3,400 × 1,950 × 1,825 mm depending on the design.

The machine can be inspected by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

Gildemeister NEF 520

Machine type: CNC cycle lathe
Manufacturer: Gildemeister
Model: NEF 520
Year of manufacture: 2006
Control: Heidenhain ManualPlus 4110

Working Range
Swing over bed: 500 mm
Swing over cross slide: 290 mm
Turning length: approx. 850 mm (depending on configuration, longer versions may be available)
Distance between centers: approx. 850 mm
X axis / cross travel: 260 mm
Z-axis / longitudinal travel: 900 mm
Main Spindle
Spindle bore: 70 mm
Spindle speed range: 10–3,000 rpm
Max spindle torque: 920 Nm
Spindle nose: DIN 55027 / size 8
2 speed ranges
Tooling
Tool holder: Multifix size C

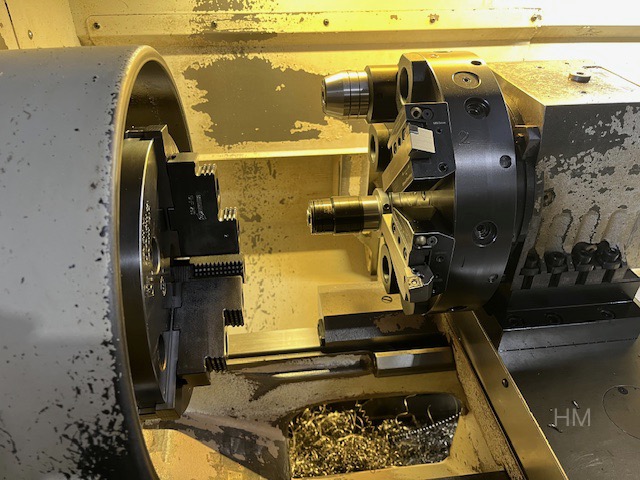

Depending on configuration, equipped with turret / Sauter turret
Tailstock
Quill stroke: 180 mm
Taper: MK 5 / Morse taper No. 5
Feeds / Rapid Traverse
Rapid traverse X-axis: 8 m/min
Rapid traverse Z axis: 10 m/min
Workholding
3-jaw chuck, approx. Ø 250 mm
Depending on configuration, additional jaws and/or additional chuck
Drive Power
Main spindle motor: approx. 12 kW

Machine weight: approx. 3.1–5.2 t, depending on configuration
Machine dimensions: approx. 3,400 × 1,950 × 1,825 mm, depending on configuration

The machine can be inspected under power by prior appointment.

Subject to prior sale. Technical data and specifications are subject to change and may contain errors.
