Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: DMG

Model: DMF 220

Year of construction: 2001

Operating hours: 0

Manufacturer: DECKEL MAHO, Type: DMF 220 linear, Year of manufacture: 2001

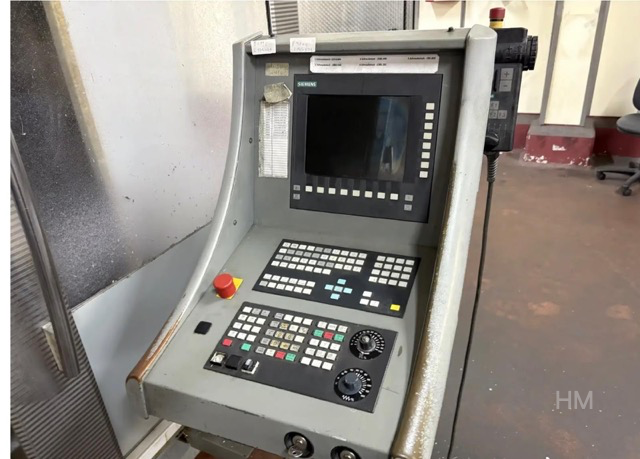

Control system: Siemens 840D Powerline

Traverse paths & axes
X-axis (longitudinal): 2,200 mm
Y-axis (transverse): 560 mm
Z-axis (vertical): 720 mm
B-axis: x/- 105°
Rapid traverse X/Y/Z: 50 m/min
X-axis drive: Highly dynamic linear drive

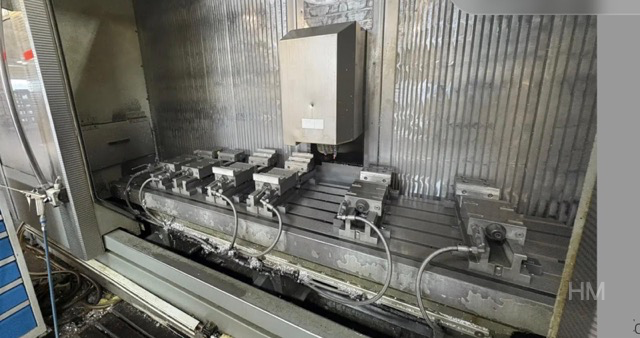

Work table
Clamping surface: 2,600 x 600 mm
Max. Table load: 2,200 kg

Main spindle
Speed range: 20 - 12,000 rpm (standard)
Drive power (100% ED): 35 / 25 kW (S1/S6)
Max. Torque: 130 / 87 Nm (with 100% ED)
Tool holder: SK 40 according to DIN 69871

Tool changer
Number of places: 30-fold magazine
Changeover time (chip-to-chip): approx. 4-6 seconds (depending on model)

Dimensions & weight
Space requirement approx.: 6,500 x 3,500 mm
Machine weight approx.: 12.5 tonnes

The machine can be inspected by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

Manufacturer: DECKEL MAHO, Model: DMF 220 linear, Year of manufacture: 2001
Control system: Siemens 840D Powerline

Travel ranges & axes
X-axis (longitudinal): 2,200 mm
Y-axis (transverse): 560 mm
Z-axis (vertical): 720 mm
B-axis: x/- 105°
Rapid traverse X/Y/Z: 50 m/min
X-axis drive: Highly dynamic linear drive

Work table
Clamping surface: 2,600 x 600 mm
Max. table load: 2,200 kg

Main spindle
Speed range: 20 – 12,000 rpm (standard)
Drive power (100% duty cycle): 35 / 25 kW (S1/S6)
Max. torque: 130 / 87 Nm (at 100% duty cycle)
Tool holder: SK 40 to DIN 69871

Tool changer
Number of positions: 30-position magazine
Changeover time (chip-to-chip): approx. 4–6 seconds (depending on model)

Dimensions & weight
Footprint approx.: 6,500 x 3,500 mm
Machine weight approx.: 12.5 t

The machine can be viewed by appointment.
Subject to changes and errors in the technical data and specifications, as well as prior sale!
