Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: STAR Micronics

Model: SB-16C

Year of construction: 2007

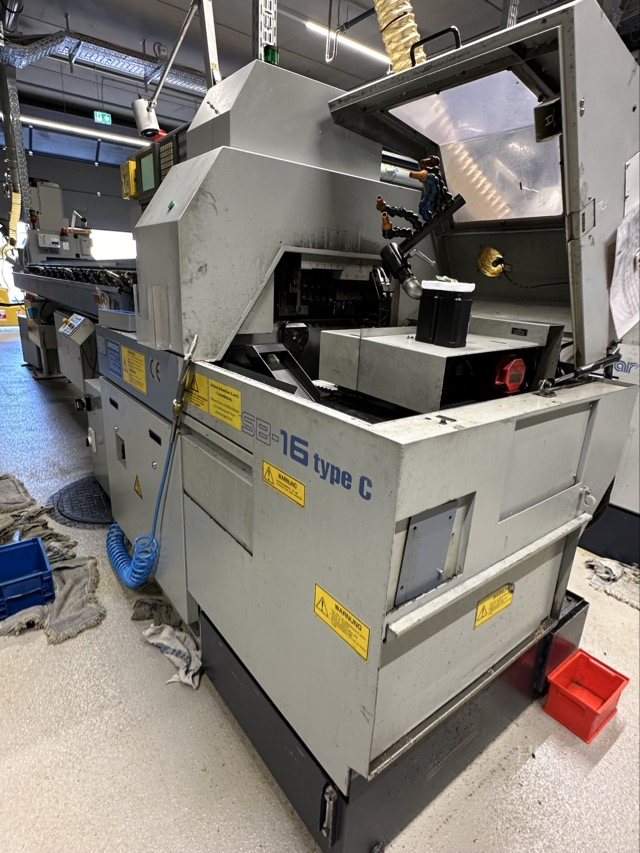

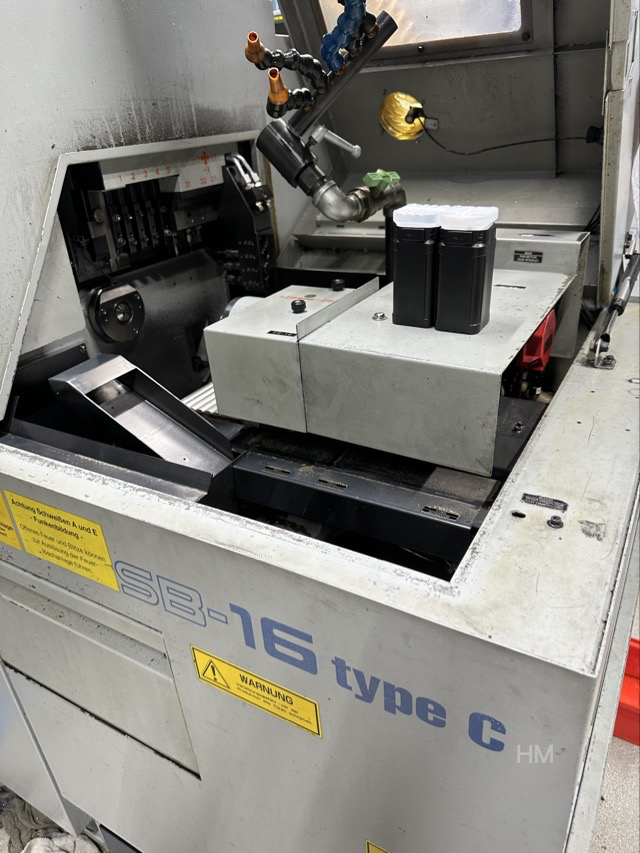

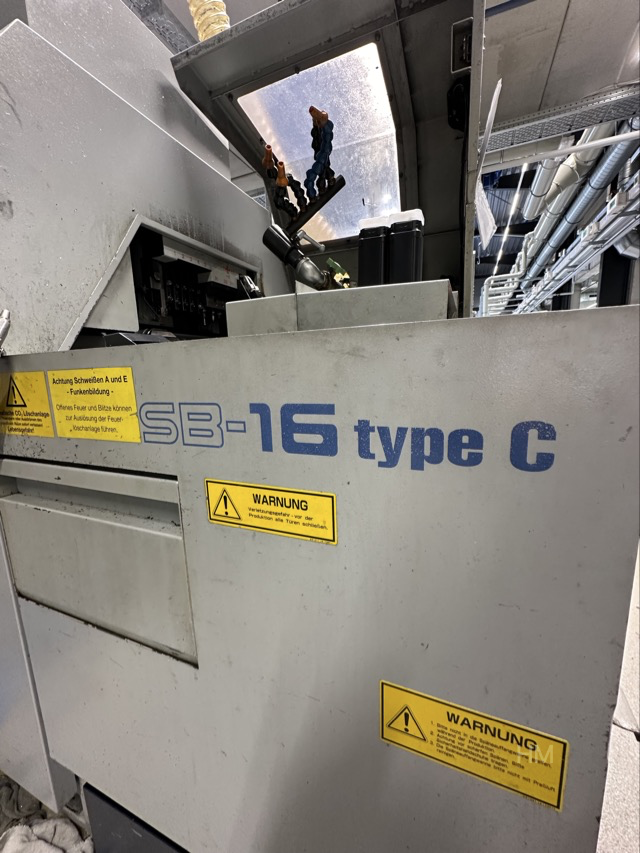

STAR CNC sliding headstock lathe SB 16C, year 2007

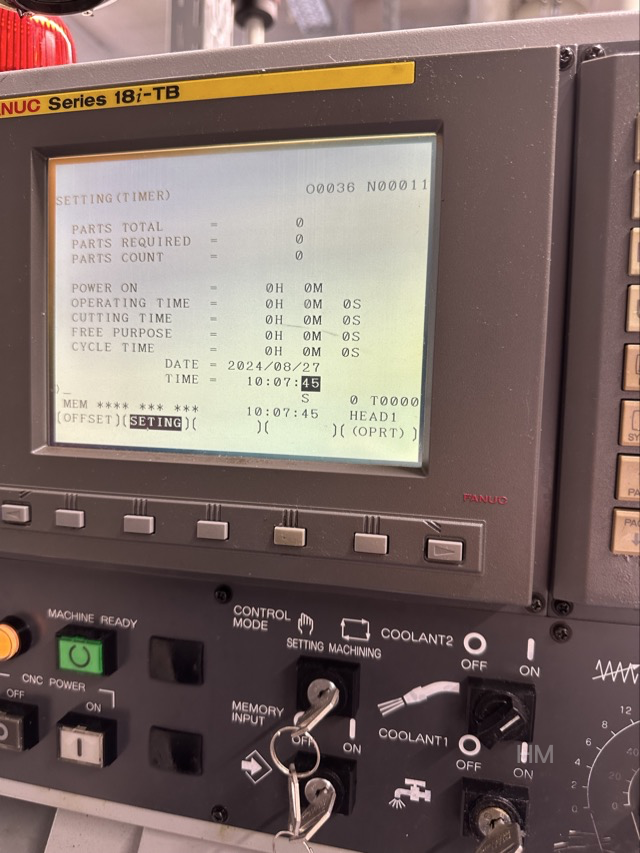

CNC control FANUC 18i-TB
Technical data
- Number of axles : 6
- Number of spindles : 2

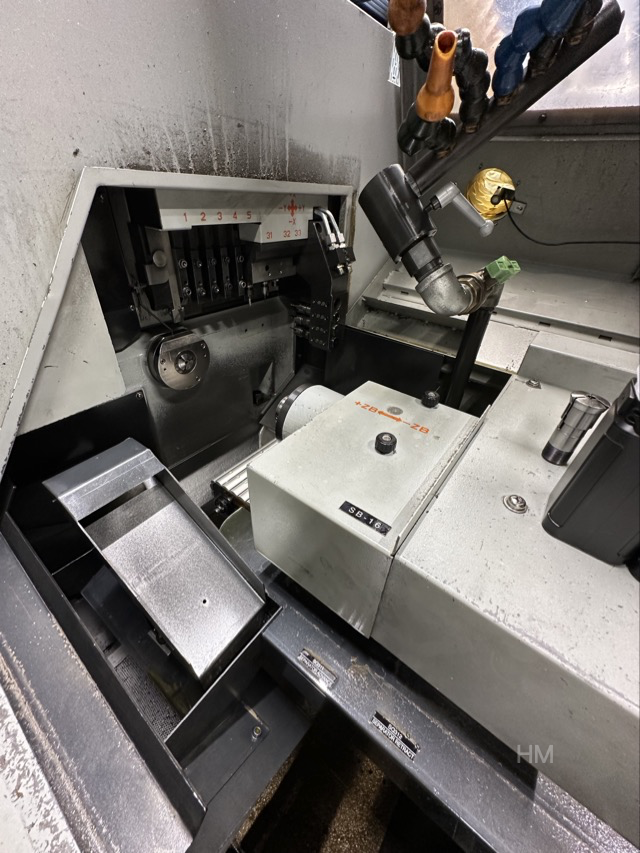

MAIN SPINDLE
- Max. Rod diameter : 16 [mm]
- Z-axis travel : 205 [mm]
- Spindle speed : 10000 [rpm]
- Spindle drive power : 3.7 [kW]
- Minimum resolution C-axis : 0.001

COUNTERSPINDLE
- Max. Rod diameter : 16 [mm]
- Spindle speed : 8000 [rpm]
- Minimum resolution C-axis : 0.001 4

- Number of tool positions : 8
- Number of motorised positions : 3

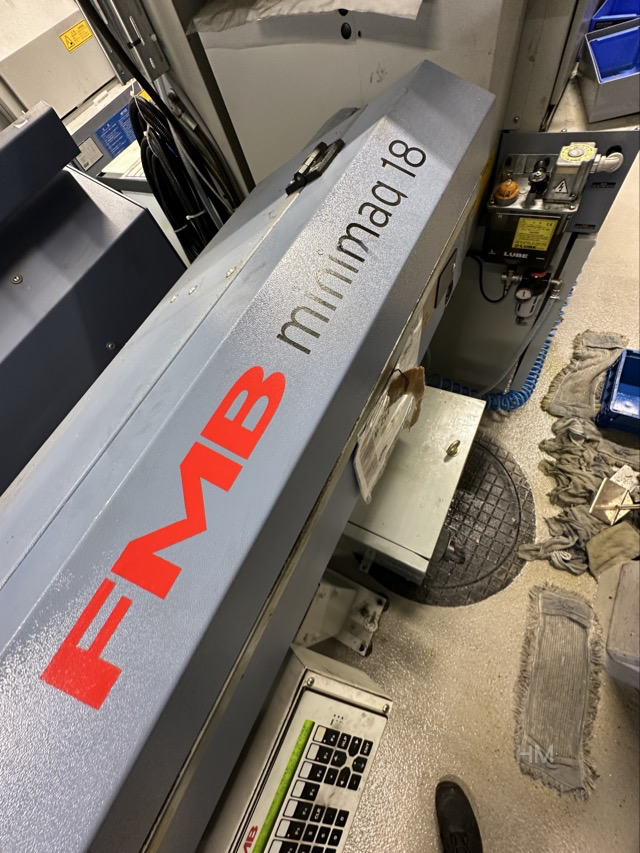

Bar feeder FMB Minimag /3200 / A
Rod diameter :2 - 16 [mm]
Bar length : 3200 [mm]

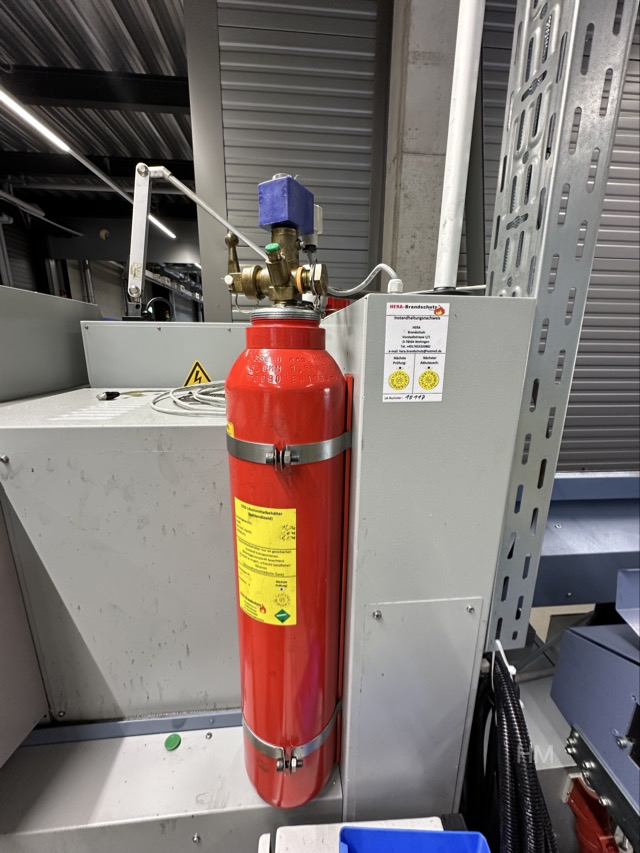

Small extinguishing system HERA fire protection
Operating manual

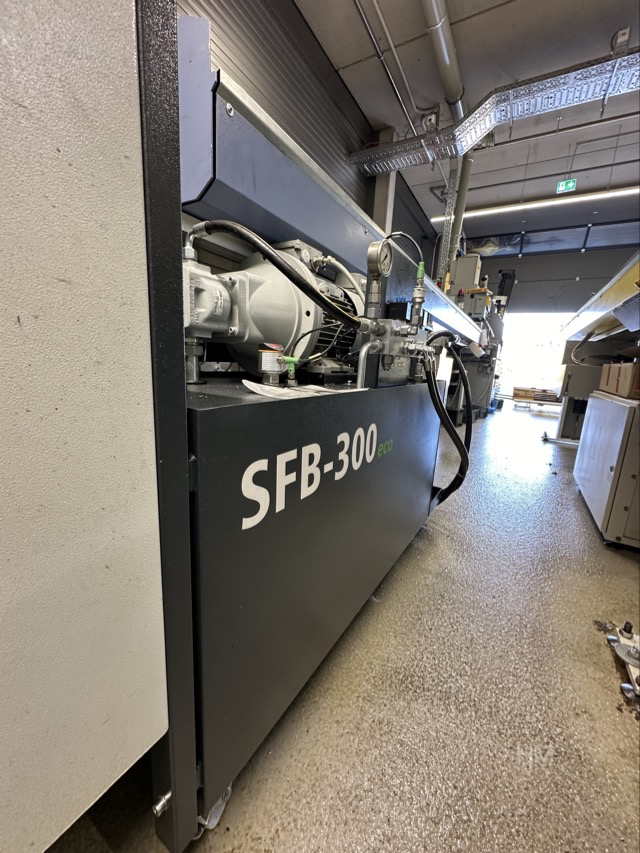

HD system SFB300-100bar/ 4V / 40um filter

The machine can be inspected by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

STAR CNC Swiss-tape lathe SB 16C, built in 2007
FANUC 18i-TB CNC control
Technical specifications
- Number of axes: 6
- Number of spindles: 2

MAIN SPINDLE
- Max. bar diameter: 16 [mm]
- Z-axis travel: 205 [mm]
- Spindle speed: 10,000 [rpm]
- Spindle drive power: 3.7 [kW]
- Minimum resolution C-axis: 0.001

COUNTER SPINDLE
- Max. bar diameter: 16 [mm]
- Spindle speed: 8000 [rpm]
- Minimum resolution C-axis: 0.001 4

- Number of tool positions: 8
- Number of motorised positions: 3

Bar loading magazine FMB Minimag /3200 / A
Bar diameter: 2 - 16 [mm]
Bar length: 3200 [mm]
HERA small fire suppression system - Fire protection
Operating manual
HD system SFB300-100bar/ 4V / 40μm filter

The machine can be viewed by appointment.
Subject to changes and errors in the technical data and specifications, as well as prior sale!
