branded Star SW-12RII _Year 2016/7_IntNo231347

SKU: IntNo231347
Category:

Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: STAR Micronics

Model: SW-12RII

Year of construction: 2016

Operating hours: 49000

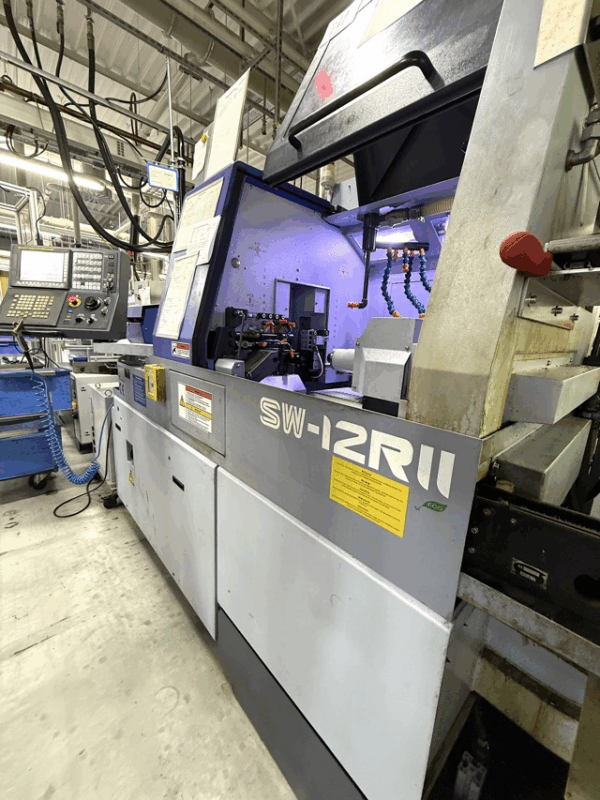

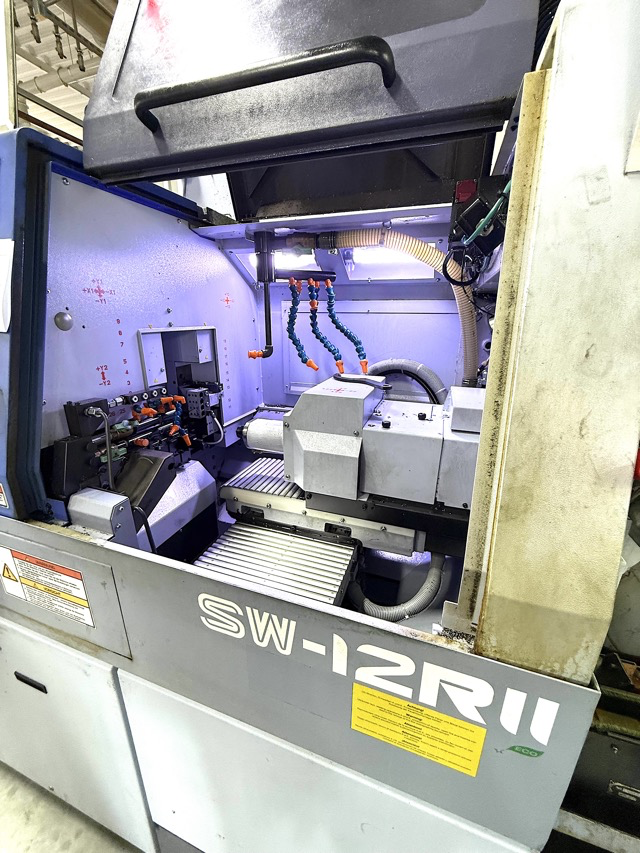

STAR SW-12RII, year 2016/7

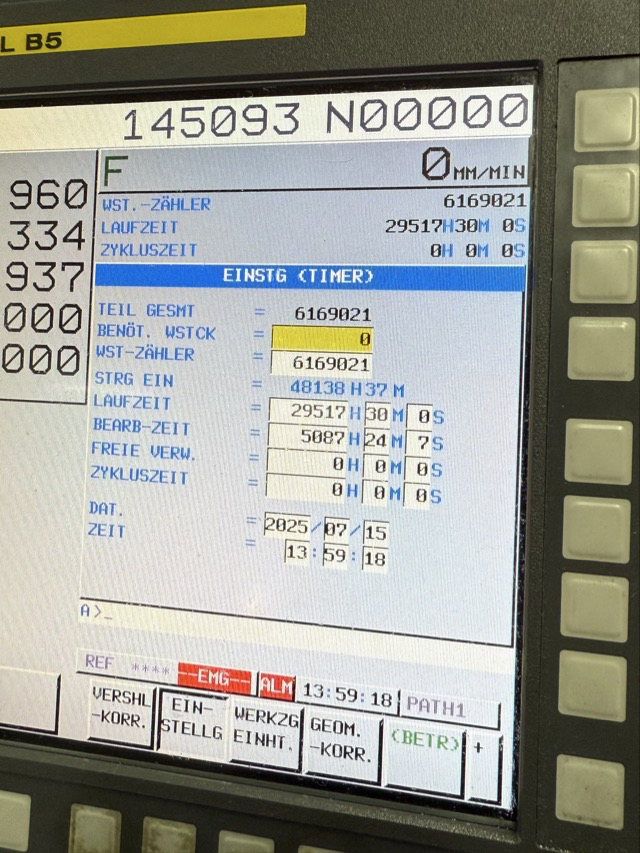

Operating hours 49,500

CNC control FANUC 31i-B5 with 10 axes
C-axis on main and counter spindle
Convertible from long to short turner
Main and counter spindle collet type E1212
Synchronously driven guide bush unit
Guide bush type F853
Standard equipment Tool holder
Front linear slide
5-fold tool holder shank 10x10mm
3 Cross drilling units ER11 (101-52)
Rear linear slide
2-fold tool holder shank 10x10mm
3 Cross drilling units ER11 (101-52)
Drilling device for front/rear face machining, with 4 ER11 drilling quills (691-21)
Drive unit for tools for main side machining
Counter spindle for back machining
Reverse side processing with 8 processing stations ER16 (101-04)
Drive unit for tools for back machining at 8 stations
Steel cut-off protection
Mechanical workpiece ejector
Parts ejection control
Blow-out device for counter spindle
Workpiece collector
Workpiece conveyor for removing the workpieces

Loading magazine FMB minimag 20 /3200 "A")
Hinged belt conveyor MAYFRAN, colour: STAR-
Kraft and Bauer small extinguishing system and CO2 extinguishing agent container
(10 kg)

Machine dimensions: approx. 1995 x 920 x 1700 [mm]
Machine weight: approx. 2100 [kg]
Loading magazine dimensions: approx. 4400 x 890 x 1800 [mm]
Loading magazine weight: approx. 1800 [kg]

Peripherals & accessories dimensions: approx. 1900 x 700 x 800 [mm]
Weight of peripherals & accessories: approx. 200 [kg]
Dimensions peripherals & accessories: approx. 1200 x 800 x 1000 [mm]
Weight of peripherals & accessories: approx. 200 [kg]

The machine can be inspected by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

STAR SW-12RII, Year 2016/7
Operating hours: 49,500

CNC control FANUC 31i-B5 with 10 axes

C-axis on main and sub spindle

Convertible from sliding-headstock to fixed-headstock turning

Main and sub spindle collet type E1212

Synchronously driven guide bushing unit

Guide bushing type F853

Standard equipment tool holder

Front linear tool post

5-position tool holder, shank 10×10 mm

3 cross drilling units ER11 (101-52)

Rear linear tool post

2-position tool holder, shank 10×10 mm

3 cross drilling units ER11 (101-52)

Drilling unit for front/rear end-face machining with 4 drilling spindles ER11 (691-21)

Drive unit for tools on the main side machining

Sub spindle for back machining

Back machining with 8 machining stations ER16 (101-04)

Drive unit for tools on 8 stations for back machining

Additional equipment

Cut-off tool breakage detection

Mechanical workpiece ejector

Part ejection control

Air blast device for sub spindle

Workpiece catcher

Workpiece conveyor for part removal

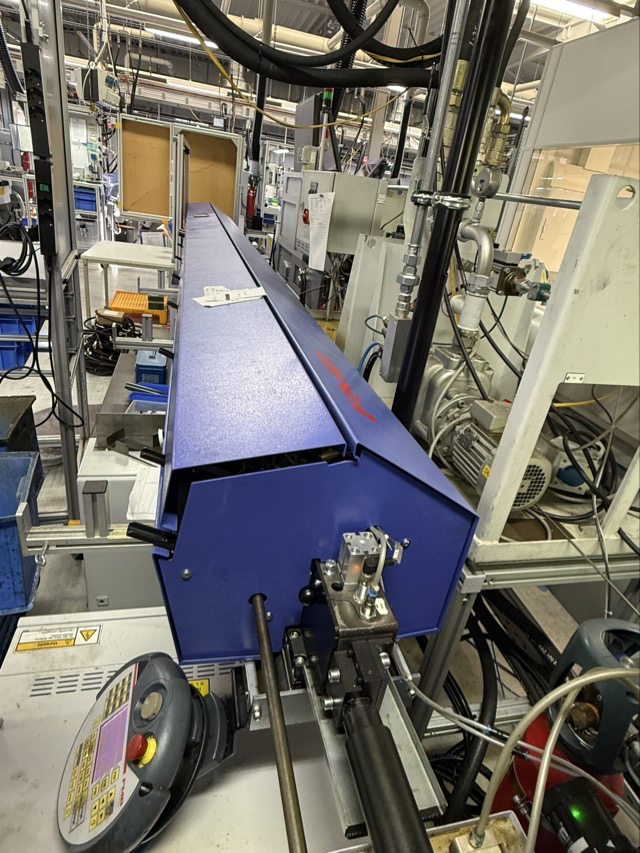

Bar feeder FMB Minimag 20/3200 "A"

Mayfran hinge belt conveyor, colour: STAR

Compact fire extinguishing system Kraft & Bauer with CO₂ extinguisher tank (10 kg)

Machine dimensions: approx. 1995 x 920 x 1700 mm
Machine weight: approx. 2100 kg

Bar feeder dimensions: approx. 4400 x 890 x 1800 mm
Bar feeder weight: approx. 1800 kg

Peripheral equipment & accessories dimensions:

approx. 1900 x 700 x 800 mm, weight approx. 200 kg

approx. 1200 x 800 x 1000 mm, weight approx. 200 kg

The machine can be inspected under power by appointment.
Specifications and details subject to change and error. Prior sale reserved!
