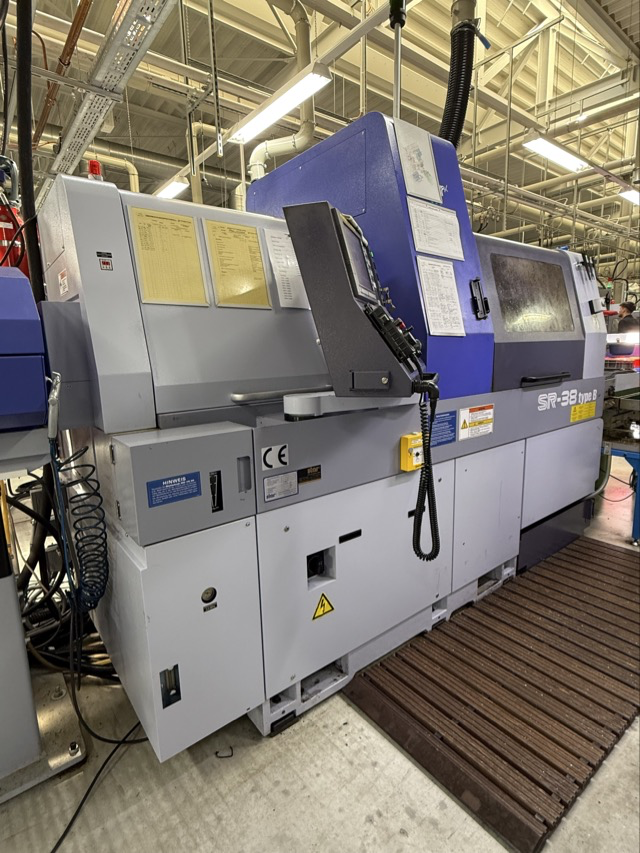

gebr. Star SR-38 Type B_Bj.2017/3_IntNr231345

Description

Location: Germany, Baden-Württemberg Southwest

Condition: As good as new

Manufacturer: STAR Micronics

Model: SR-38 Type B

Year of construction: 2017

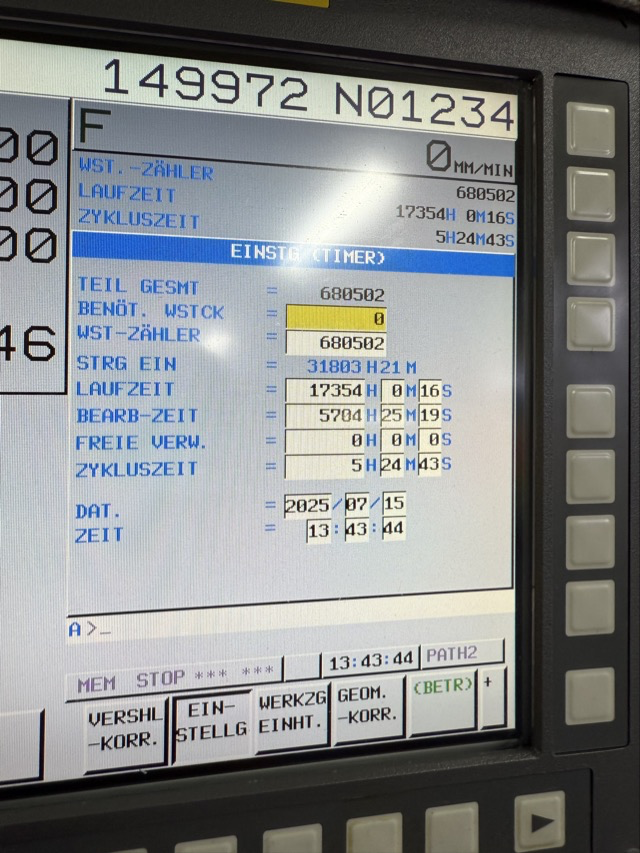

Operating hours: 32000

Neuwertige Star SR-38 Type B
Bj. 2017/3
Betriebsstunden 32.000

CNC control FANUC 31i-B5 with 10 axes
C-axis on main and counter spindle
Convertible from long to short turner
Main and counter spindle collet type E173
Synchronously driven guide bush unit
Guide bush type T248

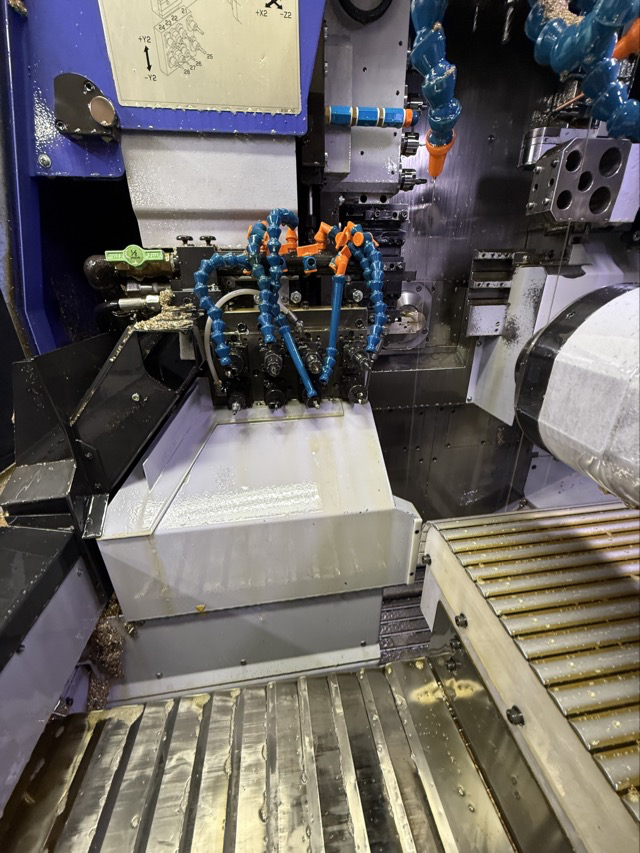

Standard equipment Tool holder
Linear slide
5-fold tool holder shank 1x 20x20mm and 4x 16x16mm
Additional X3 axis for simultaneous turning on the main side
2-fold tool holder on X3 axis shank 16x16mm

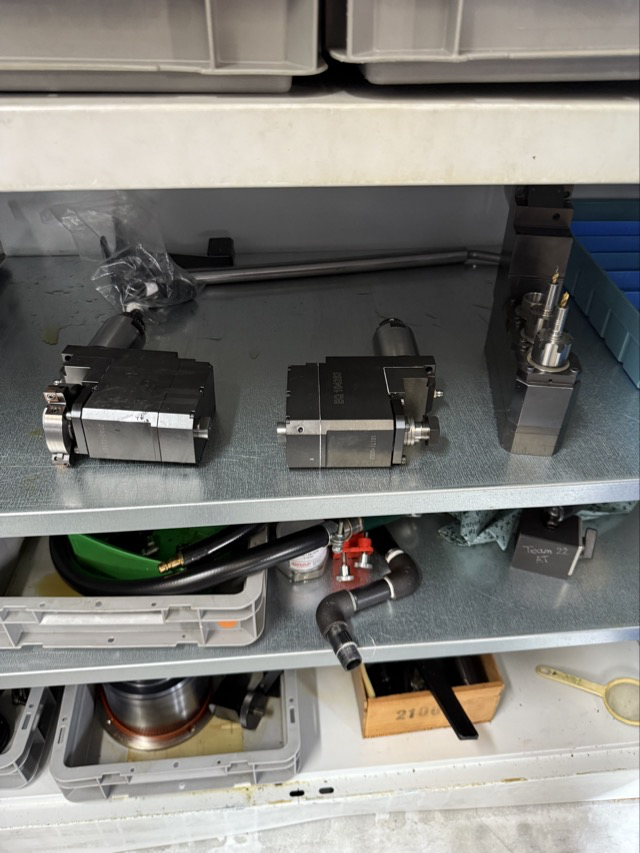

4 ER20 cross drilling units
2 cross drilling units ER20 (101-68)
3-spindle drilling device for front/rear machining on the B-axis ER16
Drilling device for front/rear face machining, with 5 drilling quills 3x ER 16 with IK (Art.20031) and 2x ER 20 with IK (Art. 85569)
Drive unit for tools for main side machining
Counter spindle for back machining
Reverse side processing with 8 processing stations ER20 (101-05)
Drive unit for tools for back machining at 8 stations
Mechanical workpiece ejector
Parts ejection control
Blow-out device for counter spindle
Workpiece collector
Workpiece conveyor for removing the workpieces
Separate coolant tank with level and flow monitoring
Coolant through the counter spindle
Oil tank
Coolant used by the machine: Oil
CE Declaration of Conformity
Operating and maintenance manual

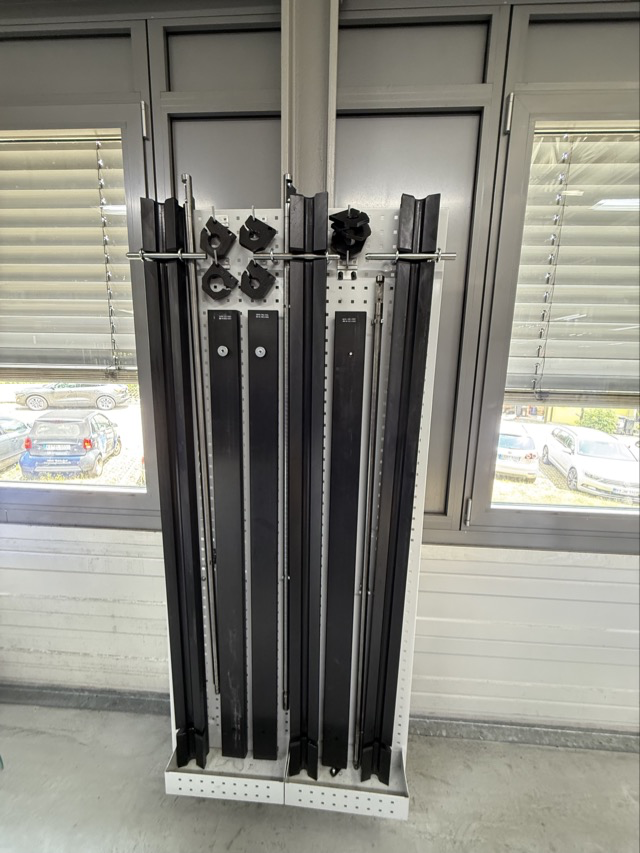

Operating tools

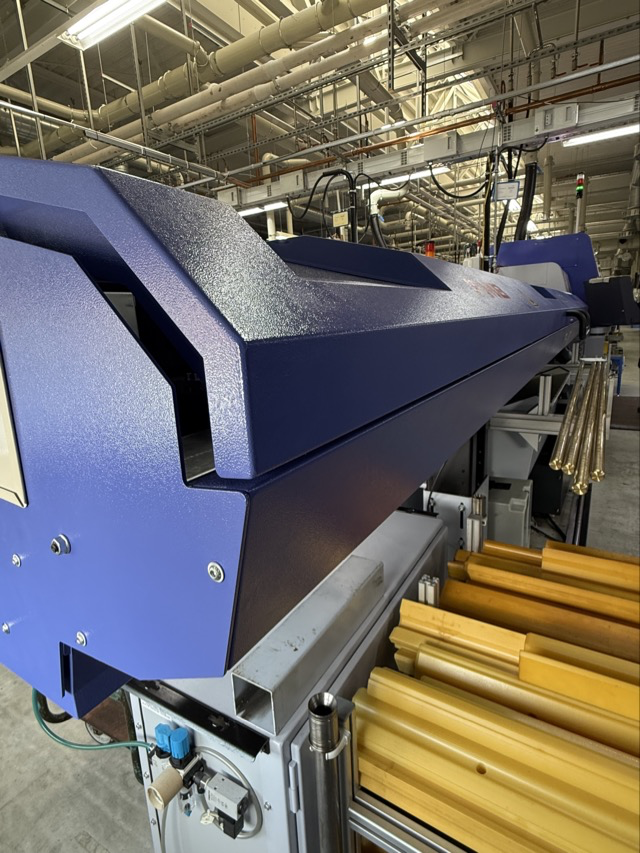

Lademagazin FMB LSK 38 / 3200 „A“
Automatisches Stangenlademagazin zum Verarbeiten von
Rod diameter 5 - 38mm, mounting variant "A"
BJ: 2017
Hinged belt conveyor MAYFRAN type MT 10, colour: STAR-
Kraft and Bauer small extinguishing system and CO2 extinguishing agent container
(10 kg)

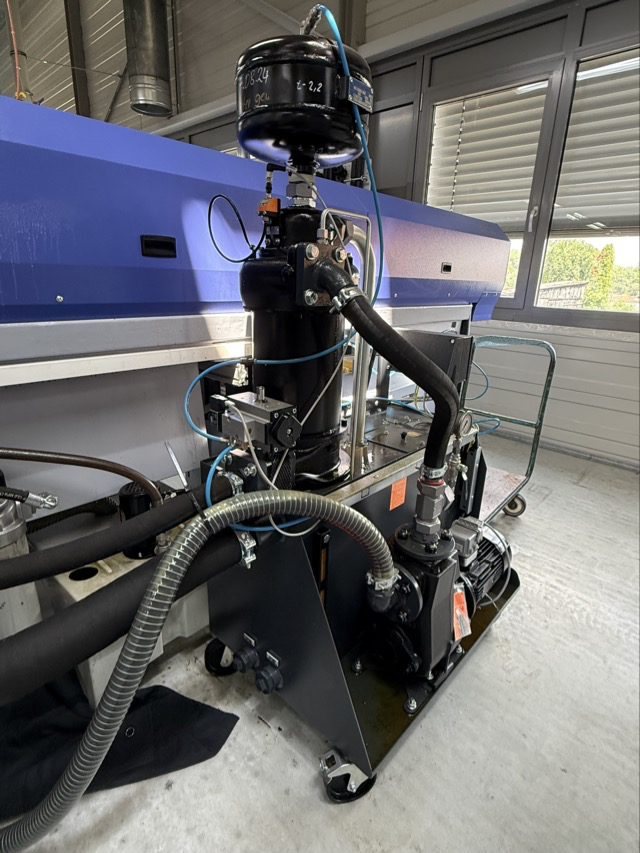

Hochdruckanlage SFB-301 eco
150bar 200 Liter
Tank, 40 µm spin-on filter made of wire mesh, medium:
Schneidöl, 8-fach Ventilumschaltung, Vollverkleidung, Anbau
under loading magazine

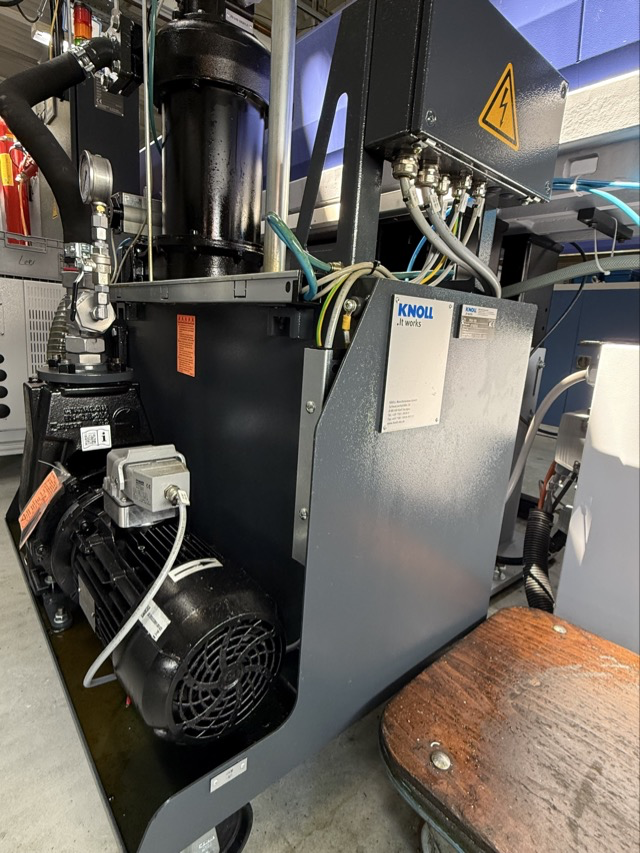

Filter System: Knoll
Typ: FKA 150 / Turbo-1

Machine dimensions: approx. 3192 x 1315 x 2120 [mm]
Machine weight: approx. 4300 [kg]
Loading magazine dimensions: approx. 4800 x 890 x 1800 [mm]
Loading magazine weight: approx. 1800 [kg]
Peripheral HD system dimensions: approx. 1500 x 500 x1000 [mm]
Weight peripheral HD system: approx. 250 [kg]
Abmessungen Peripherie Filter System Knoll: ca. 1000 x 500 x1600 [mm]
Weight peripheral HD system: approx. 250 [kg]
Peripherals & accessories dimensions: approx. 1900 x 700 x 800 [mm]
Weight of peripherals & accessories: approx. 200 [kg]
Dimensions peripherals & accessories: approx. 1200 x 800 x 1000 [mm]
Weight of peripherals & accessories: approx. 200 [kg]

The machine can be inspected by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

Star SR-38 Type B in mint condition
Year of manufacture: 2017/3
Operating hours: 32,000

FANUC 31i-B5 CNC control with 10 axes
C-axis on main and counter spindle
Convertible from long to short turning
Main and counter spindle collet type E173
Synchronously driven guide bush unit
Guide bush type T248

Standard equipment Tool holder
Linear slide
5-fold tool holder Shaft 1x 20x20mm and 4x 16x16mm
Additional X3 axis for simultaneous turning on the main side
2-station tool holder on X3 axis Shank 16x16mm
4 cross drilling devices ER20
2 cross drilling devices ER20 (101-68)
3-spindle drilling device for front/rear machining on the B axis ER16
Drilling device for front/rear end machining, with 5 drill chucks 3x ER 16 with IK (item 20031) and 2x ER 20 with IK (item 85569)
Drive device for tools for main side machining
Counter spindle for rear side machining
Rear side machining with 8 machining stations ER20 (101-05)
Drive unit for tools for rear machining on 8 stations
Mechanical workpiece ejector
Parts ejector control
Blow-out device for counter spindle
Workpiece pick-up device
Workpiece conveyor for removing the workpieces
Separate coolant tank with level and flow monitoring
Coolant through the counter spindle
Oil tank
Coolant used in the machine: Oil
CE Declaration of Conformity
Operating and maintenance manual
Operating tools

FMB LSK 38 / 3200 ‘A’ loading magazine
Automatic bar loading magazine for processing
bar diameters 5 – 38 mm, attachment variant ‘A’
Year of manufacture: 2017
MAYFRAN hinged belt conveyor type MT 10, colour: STAR
Kraft und Bauer small fire extinguishing system and CO2 extinguishing agent container
(10 kg)
SFB-301 eco high-pressure system
150 bar 200 litre
tank, 40 µm replaceable wire mesh filter, medium:
cutting oil, 8-way valve switch, full cladding, mounted
under loading magazine
Filter system: Knoll
type: FKA 150 / Turbo-1

Machine dimensions: approx. 3192 x 1315 x 2120 [mm]
Machine weight: approx. 4300 [kg]
Loading magazine dimensions: approx. 4800 x 890 x 1800 [mm]
Loading magazine weight: approx. 1800 [kg]
Dimensions of HD system peripherals: approx. 1500 x 500 x 1000 [mm]
Weight of HD system peripherals: approx. 250 [kg]
Dimensions of Knoll filter system peripherals: approx. 1000 x 500 x 1600 [mm]
Weight of peripheral HD system: approx. 250 [kg]
Dimensions of peripherals & accessories: approx. 1900 x 700 x 800 [mm]
Weight of peripherals & accessories: approx. 200 [kg]
Dimensions of peripherals and accessories: approx. 1200 x 800 x 1000 [mm]
Weight of peripherals and accessories: approx. 200 [kg]

The machine can be viewed by appointment.
Subject to changes and errors in the technical data and specifications, as well as prior sale!
