Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: DMG

Model: Speed 12-7

Year of construction: 2004

Operating hours: 153199

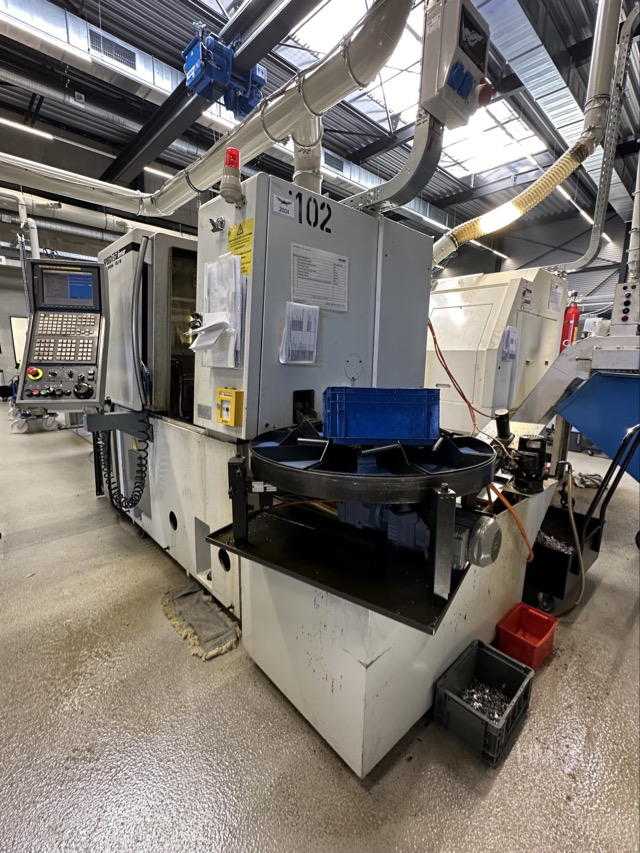

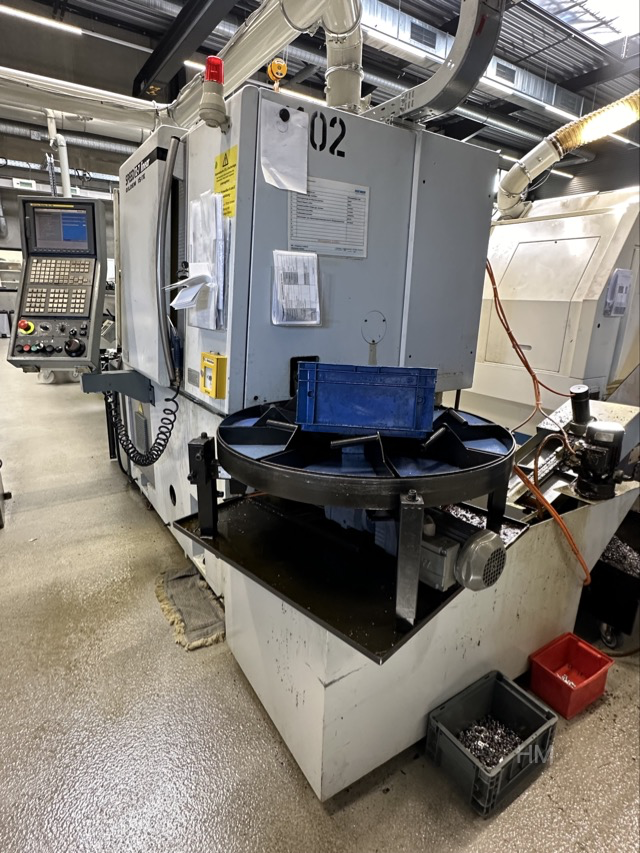

A highly dynamic sliding headstock automatic lathe DMG Speed 12-7 Linear is for sale
with loading magazine FMB Minimag.

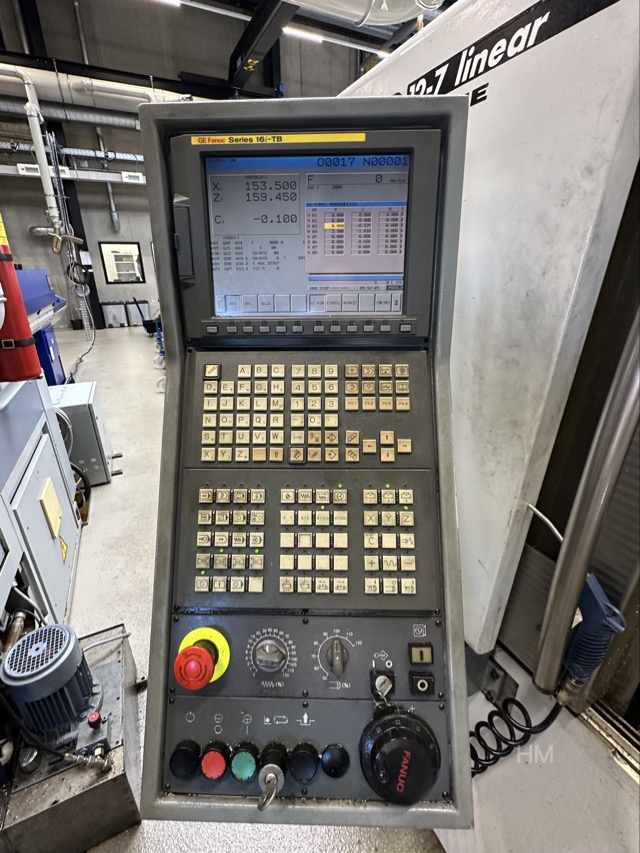

Control system: Fanuc 16i-TB with DMG-specific user interface
Year of construction 2004

Technical data

Number of axes: 7 axes (X1, Y1, Z1, X2, Z2, C1, C2)
Max. Rod diameter: 12.7 mm
Max. Turning length: 120 mm
Rapid traverse speeds: X-axis (linear): 40 m/min
Linear motor cooling: Separate cooling unit for thermal stabilisation of the linear drive.
Z-axis: 30 m/min

Main spindle speed range: 0 - 12,000 rpm
Drive power: 3.7 / 5.5 kW
C-axis: 0.001° resolution for high-precision milling operations

Counter spindle speed range: 0 - 12,000 rpm
Travelling distance Z2: 150 mm
C-axis: Fully integrated C-axis

Tool carrier (linear slide system)
Total number of tools: up to 18 places
Driven tools: 3 to 5 places for cross machining
Speed of driven tools: max. 6,000 rpm

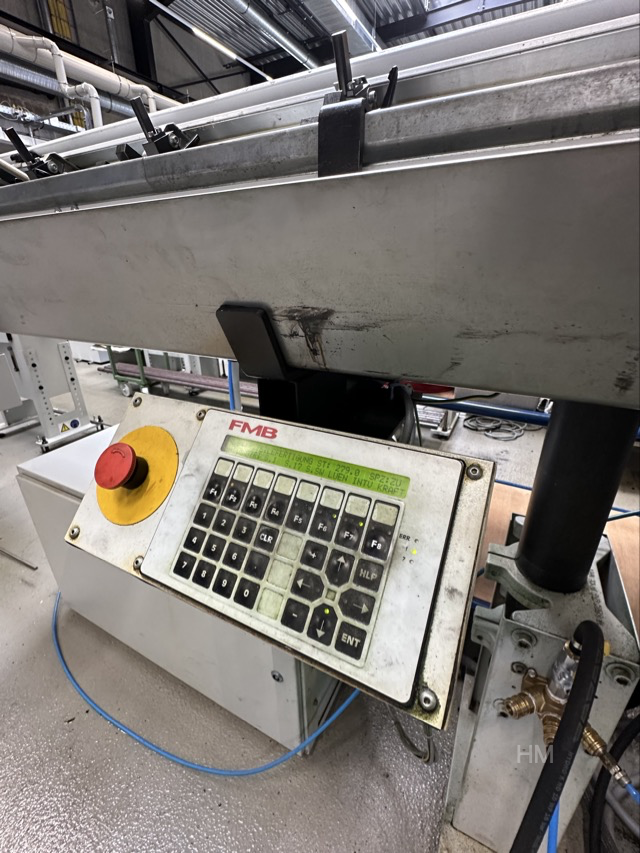

Loading magazine: FMB Minimag for the diameter range from 2 to 23 mm.
Bar length: 3,0200 mm
Chip conveyor
Small extinguishing system / property extinguishing systems Kraft and Bauer
Parts separator
Chip flushing system

The machine can be inspected by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

For sale: a highly dynamic DMG Speed 12-7 Linear long-turning automatic lathe
with FMB Minimag loading magazine.
Control system: Fanuc 16i-TB with DMG-specific user interface
Year of manufacture: 2004

Technical data

Number of axes: 7 axes (X1, Y1, Z1, X2, Z2, C1, C2)
Max. bar diameter: 12.7 mm
Max. turning length: 120 mm
Rapid traverse speeds: X-axis (linear): 40 m/min
Linear motor cooling: Separate cooling unit for thermal stabilisation of the linear drive.
Z-axis: 30 m/min

Main spindle speed range: 0 - 12,000 rpm
Drive power: 3.7 / 5.5 kW
C-axis: 0.001° resolution for high-precision milling operations

Counter-spindle speed range: 0 - 12,000 rpm
Travel range Z2: 150 mm
C-axis: Fully-fledged C-axis integrated

Tool carrier (linear slide system)
Total number of tools: up to 18 positions
Driven tools: 3 to 5 positions for cross-machining
Speed of driven tools: max. 6,000 rpm

Loading magazine: FMB Minimag for the diameter range of 2 to 23 mm.
Bar length: 3,020 mm
Chip conveyor
Small fire extinguishing system / Kraft und Bauer object fire extinguishing systems
Parts separator
Chip flushing system

The machine can be inspected by appointment.
Subject to changes and errors in the technical data and information as well as prior sale!
