Description

Location: Germany, Baden-Württemberg Southwest

Condition: Used

Manufacturer: HAAS

Model: ST-20SS

Year of construction: 2010

Operating hours: 1900

Gebrauchtes CNC-Drehzentrum Haas ST-20SS (Super Speed) Bj. 2010,
inklusive LNS Super Hydrobar 6.50 HS Bj. 2010.

Technical details:
15-Zoll-Farb-LCD-Monitor, benutzerfreundliche HAAS-Steuerung
Max. Drehdurchmesser: bis zu 254 mm
Max. Drehlänge: 533 mm.

Spindle:
Hauptspindellager defekt!
Drehzahl: max. 5.000 U/min.
Antriebsleistung: 22,4 kW (30 hp) High-Performance Vector Drive.
Spindelnase: A2-6.
Spindelbohrung: 88,9 mm

Werkzeugrevolver:
24-Stationen Hybrid-Revolver

Eilgänge:
24,0 m/min (X-Achse)
30,5 m/min (Z-Achse).
Equipment:
automatisches Werkzeug-Voreinstellsystem (Auto Probe Arm).
Einheit für angetriebene Werkzeuge
LNS Super Hydrobar 6.50 HS (Bj. 2010)
für Stangendurchmesser von ca. 5 mm bis 50 mm (modellabhängig innerhalb der HS-Serie bis 65/68 mm erweiterbar).

The machine can be inspected under power by appointment.
Changes and errors in the technical data and information as well as prior sale reserved!

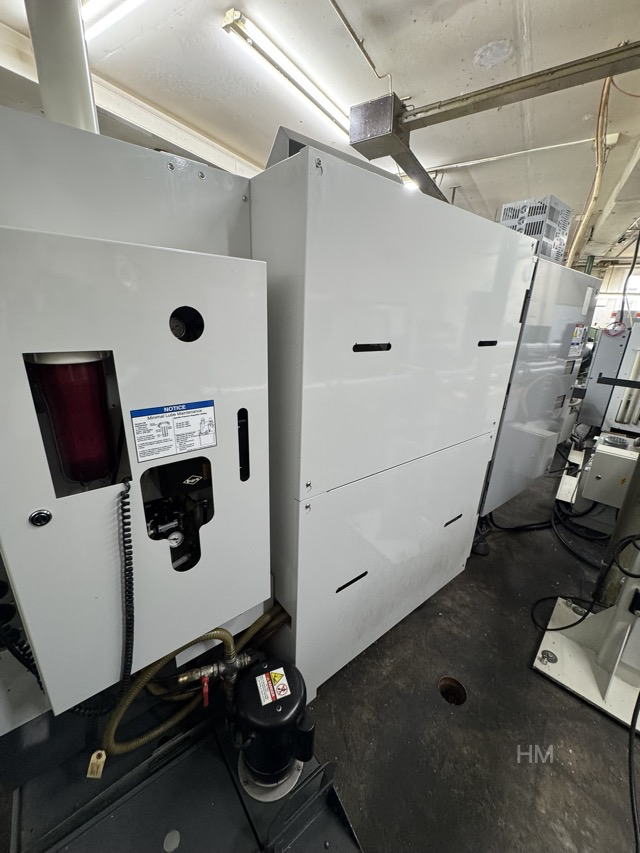

Used Haas ST-20SS (Super Speed) CNC turning centre, built in 2010,
including LNS Super Hydrobar 6.50 HS, built in 2010.

Technical details:
15-inch colour LCD monitor, user-friendly HAAS control
Max. turning diameter: up to 254 mm
Max. turning length: 533 mm.

Spindle:
Main spindle bearing defective!
Speed: max. 5,000 rpm.
Drive power: 22.4 kW (30 hp) high-performance vector drive.
Spindle nose: A2-6.
Spindle bore: 88.9 mm

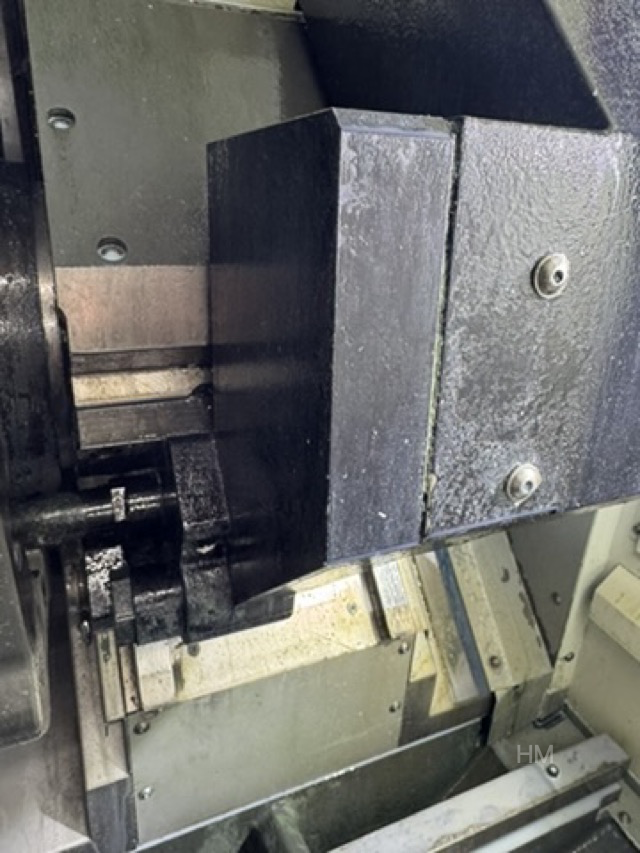

Tool turret:
24-station hybrid turret

Rapid traverse:
24.0 m/min (X-axis)
30.5 m/min (Z-axis).
Equipment:
automatic tool presetting system (Auto Probe Arm)
Unit for driven tools
LNS Super Hydrobar 6.50 HS (built in 2010)
for bar diameters from approx. 5 mm to 50 mm (expandable to 65/68 mm within the HS series, depending on the model).

The machine can be viewed under power by appointment.
Subject to changes and errors in the technical data and specifications, as well as prior sale!
